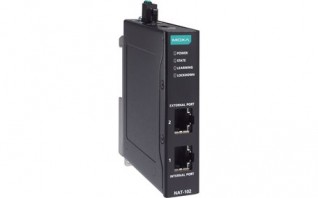

NAT-102 SERIES

2-port industrial Network Address Translation (NAT) devices, -10 to 60°C operating temperature
nat-102-series
User-friendly NAT functionality simplifies network integration
Hands-free network access control through automatic whitelisting of locally connected devices
Ultra-compact size and robust industrial design suitable for cabinet installation
Integrated security features to ensure device and network safety
Supports secure boot for checking system integrity
-40 to 75°C operating temperature range (-T model)

Input/Output Interface

  • Buttons: Reset button

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 2
  • Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X)

Ethernet Software Features

  • Management: Web Console (HTTP/HTTPS) LLDP Telnet TFTP HTTPS SSH
  • Security: Secure Boot Trust access control
  • Time Management: NTP Server/Client SNTP
  • Unicast Routing: Static Route
  • Routing: Throughput: 15K packets per second (max. 100 Mbps)
  • Routing Table: Max. 32 routing rules
  • Concurrent Connections: Max. 30K
  • Connections Per Second: Max. 4.5K

LED Interface

  • LED Indicators: POWER, STATE, LEARNING, LOCKDOWN

Firewall

  • Filter: IP address MAC address Ports
  • Port-based Auto Learning Lock: MAC address IP address
  • Throughput: Max. 15K packets per second (max. 100 Mbps)

NAT

  • Features: 1-to-1 N-to-1 Port forwarding NAT loopback
  • Throughput: Max. 15K packets per second (max. 100 Mbps)

Real-Time Firewall / VPN Event Log

  • Event Type: Policy enforcement
  • Media: Local storage Syslog server

Serial Interface

  • Console Port: RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
  • Connector: USB Type-C

Power Parameters

  • Connection: Removable terminal block
  • Input Voltage: 12/24/48 VDC
  • Input Current: 0.196 A @ 12 VDC 0.100 A @ 24 VDC 0.056 A @ 48 VDC
  • Reverse Polarity Protection: Supported
  • Operating Voltage: 9.6 to 60 VDC

Physical Characteristics

  • Housing: Metal
  • Dimensions: 20 x 90 x 73 mm (0.79 x 3.54 x 2.87 in)
  • Weight: 210 g (0.47 lb)
  • Installation: DIN-rail mounting Wall mounting (with optional kit)

Environmental Limits

  • Operating Temperature: -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • Safety: UL 62368-1
  • EMC: EN 55032/35
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
  • Hazardous Locations: ATEX Class I Division 2
  • Traffic Control: NEMA TS2
  • Railway: EN 50121-4
  • Shock: IEC 60068-2-27
  • Freefall: IEC 60068-2-32
  • Vibration: IEC 60068-2-6

MTBF

  • Time: 2,135,469 hrs
  • Standards: Telcordia (Bellcore), GB

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
NAT-102-T 2-port industrial Network Address Translation (NAT) devices, -40 to 75°C operating temperature
NAT-102 2-port industrial Network Address Translation (NAT) devices, -10 to 60°C operating temperature
