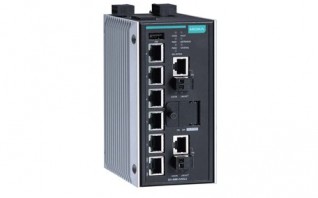

IEX-408E SERIES

Managed VDSL2 Ethernet extender switch with 6 10/100BaseT(X) ports and 2 DSL ports, 1 isolated power supply (12/24/48 VDC), -40 to 75°C operating temperature
VDSL2 high-speed long-distance copper connections; up to 300 m at 100 Mbps and up to 3 km at 1 Mbps over twisted-pair copper wires
Automatic CO/CPE negotiation reduces configuration time
Turbo Ring and Turbo Chain on both Fast Ethernet and VDSL2 ports for fast recovery
Controllable bypass mode on VDSL2 ports gives higher availability in a daisy-chain topology
Flexible deployment with 2-pin or RJ11/45 connector on VDSL2 ports
Easy network management by web browser, Telnet/serial console, Windows utility, ABC-02, and MXview

Input/Output Interface

  • Alarm Contact Channels: Resistive load: 1 A @ 24 VDC
  • Digital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA
  • Buttons: Reset button

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 6 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection
  • Combo Port, RJ-11 (RJ45 connector) or Detachable 2-Contact Terminal Block: 2
  • Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.1X for authentication IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.3x for flow control IEEE 802.3ad for Port Trunk with LACP ITU G.993.2 for very high speed digital subscriber line transceivers 2

Ethernet Software Features

  • Filter: 802.1Q VLAN, Port-based VLAN, IGMP v1/v2, GVRP, GMRP
  • Industrial Protocols: EtherNet/IP, Modbus TCP, PROFINET
  • Management: SNMPv1/v2c/v3, LLDP, Syslog, RMON, DHCP Server/Client, DHCP Option 66/67/82, Back Pressure Flow Control, BOOTP, Flow control, RARP, SMTP, SNMP Inform, Telnet, TFTP
  • MIB: MIB-II, Bridge MIB, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
  • Redundancy Protocols: STP, MSTP, RSTP, Link Aggregation, Turbo Chain, Turbo Ring v1/v2
  • Security: HTTPS/SSL, RADIUS, TACACS+, Port Lock, SSH, Broadcast storm protection, Sticky MAC, NTP authentication
  • Time Management: NTP Server/Client, SNTP

Switch Properties

  • IGMP Groups: 256
  • MAC Table Size: 16 K
  • Max. No. of VLANs: 64
  • Packet Buffer Size: 1 Mbits 1.5 Mbits for Fast Ethernet 8 kilobits for DSL
  • Priority Queues: 4
  • VLAN ID Range: VID 1 to 4094

USB Interface

  • Storage Port: USB Type A

LED Interface

  • LED Indicators: PWR1, PWR2, FAULT, STATE LINK/ACT, CO/CPE, 10/100 (Fast Ethernet port) MSTR/HEAD, CPLR/TAIL, DSL BYPASS

Serial Interface

  • Console Port: USB-serial console (Type B connector)

DIP Switch Configuration

  • Ethernet Interface: Turbo Ring, Master, Coupler, Reserve

Power Parameters

  • Connection: 2 removable 4-contact terminal block(s)
  • Input Voltage: 12/24/48 VDC Redundant dual inputs
  • Input Current: 1 A @ 12 VDC 0.48 A @ 24 VDC 0.26 A @ 48 VDC
  • Operating Voltage: 9.6 to 60 VDC
  • Overload Current Protection: Supported
  • Reverse Polarity Protection: Supported

Physical Characteristics

  • Housing: Metal
  • IP Rating: IP30
  • Dimensions: 74 x 111 x 135 mm (2.91 x 4.37 x 5.32 in)
  • Weight: 1230 g (271 lb)
  • Installation: DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

  • Altitude: 2000 m
  • Operating Temperature: -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • Safety: UL 61010-2-201 EN 60950-1
  • EMC: EN 55032/24
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
  • Traffic Control: NEMA TS2
  • Railway: EN 50121-4
  • Shock: IEC 60068-2-27
  • Freefall: IEC 60068-2-32
  • Vibration: IEC 60068-2-6

MTBF

  • Time: 782,910 hrs
  • Standards: Telcordia (Bellcore), GB

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty
