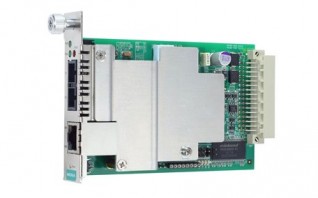

CSM-400 SERIES

10/100BaseT(X)-to-100BaseFX slide-in management module converter with ST connector, multi-mode, 0 to 55°C operating temperature
csm-400-series
LFP (Link Fault Pass-Through) and FEF (Far End Fault)
Supports store-and-forward mode and pass-through mode
Auto-negotiation
Supports IEEE 802.3AH OAM protocol
Plug and play
Hot-swappable
IP-based remote management
Supports WDM type modules

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 1
  • 100BaseFX Ports (multi-mode SC connector): 1
  • Optical Fiber: 1
  • Optical Fiber: 100BaseFX
  • Optical Fiber: Multi-Mode
  • Optical Fiber: Single-Mode
  • Optical Fiber: Fiber Cable Type
  • Optical Fiber: OM1
  • Optical Fiber: 50/125 µm
  • Optical Fiber: G.652
  • Optical Fiber: 800 MHz x km
  • Optical Fiber: Typical Distance
  • Optical Fiber: 4 km
  • Optical Fiber: 5 km
  • Optical Fiber: 40 km
  • Optical Fiber: Wavelength
  • Optical Fiber: Typical (nm)
  • Optical Fiber: 1300
  • Optical Fiber: 1310
  • Optical Fiber: TX Range (nm)
  • Optical Fiber: 1260 to 1360
  • Optical Fiber: 1280 to 1340
  • Optical Fiber: RX Range (nm)
  • Optical Fiber: 1100 to 1600
  • Optical Fiber: 1100 to 1600
  • Optical Fiber: Optical Power
  • Optical Fiber: TX Range (dBm)
  • Optical Fiber: -10 to -20
  • Optical Fiber: 0 to -5
  • Optical Fiber: RX Range (dBm)
  • Optical Fiber: -3 to -32
  • Optical Fiber: -3 to -34
  • Optical Fiber: Link Budget (dB)
  • Optical Fiber: 12
  • Optical Fiber: 29
  • Optical Fiber: Dispersion Penalty (dB)
  • Optical Fiber: 3
  • Optical Fiber: 1
  • Optical Fiber: Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
  • Optical Fiber: Read more
  • Optical Fiber: 100BaseFX WDM-A
  • Optical Fiber: 100BaseFX WDM-A
  • Optical Fiber: Single-Mode
  • Optical Fiber: Single-Mode
  • Optical Fiber: Fiber Cable Type
  • Optical Fiber: G.652
  • Optical Fiber: G.652
  • Optical Fiber: Typical Distance
  • Optical Fiber: 20 km
  • Optical Fiber: 20 km
  • Optical Fiber: Wavelength
  • Optical Fiber: Typical (nm)
  • Optical Fiber: 1310/1550 nm
  • Optical Fiber: 1550/1310 nm
  • Optical Fiber: TX Range (nm)
  • Optical Fiber: 1280 to 1340
  • Optical Fiber: 1480 to 1600
  • Optical Fiber: RX Range (nm)
  • Optical Fiber: 1480 to 1600
  • Optical Fiber: 1280 to 1340
  • Optical Fiber: Optical Power
  • Optical Fiber: TX Range (dBm)
  • Optical Fiber: -5 to -15
  • Optical Fiber: -5 to -15
  • Optical Fiber: RX Range (dBm)
  • Optical Fiber: -3 to -32
  • Optical Fiber: -3 to -32
  • Optical Fiber: Link Budget (dB)
  • Optical Fiber: 17
  • Optical Fiber: 17
  • Optical Fiber: Dispersion Penalty (dB)
  • Optical Fiber: 1
  • Optical Fiber: 1
  • Optical Fiber: Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
  • Magnetic Isolation Protection: 1.5 kV (built-in)
  • Standards: IEEE 802.3u for 100BaseT(X) and 100BaseFX
  • 100BaseFX Ports (multi-mode ST connector): 1

Power Parameters

  • Input Current: 220 mA @ 12 VDC
  • Input Voltage: 12 VDC
  • Overload Current Protection: Supported
  • Power Consumption: 220 mA @ 12 VDC

Physical Characteristics

  • Dimensions: 86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in)
  • Weight: Product only: 115 g (0.25 lb)

Environmental Limits

  • Operating Temperature: -20 to 55°C (-4 to 131°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032/35
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC); Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
  • Environmental Testing: IEC 60068-2-1 IEC 60068-2-14 IEC 60068-2-2 IEC 60068-2-3
  • Safety: EN 62368-1 UL 62368-1
  • Vibration: IEC 60068-2-6

MTBF

  • Time: 1,454,560 hrs
  • Standards: Telcordia (Bellcore), GB

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Security Functions

  • Authentication: Local database (password only)
  • Encryption: HTTPS AES-128 RSA-1024 SHA-1 SHA-256
  • Security Protocols: SSHv2 HTTPS (TLS 1.2)

Available Models

Model No. Description Quantity
CSM-400-1213-T 10/100BaseT(X) to 100BaseFX slide-in management module converter, multi-mode ST connector, -40 to 75°C operating temperature
CSM-400-1218-T 10/100BaseT(X) to 100BaseFX slide-in management module converter, single-mode SC connector, -40 to 75°C operating temperature
CSM-400-1214 10/100BaseT(X) to 100BaseFX slide-in management module converter, multi-mode SC connector, -20 to 55°C operating temperature
CSM-400-1224 10/100BaseT(X) to 100BaseFX slide-in management module converter, WDM-A single-mode SC connector, -20 to 55°C operating temperature
CSM-400-1213 10/100BaseT(X)-to-100BaseFX slide-in management module converter with ST connector, multi-mode, 0 to 55°C operating temperature
CSM-400-1218 10/100BaseT(X) to 100BaseFX slide-in management module converter, single-mode SC connector, -20 to 55°C operating temperature
CSM-400-1225-T 10/100BaseT(X) to 100BaseFX slide-in management module converter, WDM-B single-mode SC connector, -40 to 75°C operating temperature
CSM-400-1225 10/100BaseT(X) to 100BaseFX slide-in management module converter, WDM-B single-mode SC connector, -20 to 55°C operating temperature
CSM-400-1214-T 10/100BaseT(X) to 100BaseFX slide-in management module converter, multi-mode SC connector, -40 to 75°C operating temperature
CSM-400-1224-T 10/100BaseT(X) to 100BaseFX slide-in management module converter, WDM-A single-mode SC connector, -40 to 75°C operating temperature
