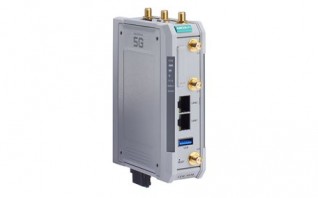

Qualcomm® Snapdragon™ X55
5G-ready media converter with industrial-grade FCC/UL/NCC/JET/Telec certifications
Dual SIM slots
2 auto-sensing 10/100/1000 Mbps Ethernet ports
1 RS-232/422/485 serial port
LEDs for easy installation and maintenance
-40 to 70°C wide-temperature design

Media Converter Interface

• Ethernet Ports: Auto sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
• Serial Ports: RS-232/422/485 ports x 1 (5-pin terminal block)
• SIM Format: Nano
• Number of SIMs: 2

Ethernet Interface

• 10/100/1000BaseT(X) Ports (RJ45 connector): 2
• Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X)
• Magnetic Isolation Protection: 1.5 kV (built-in)

Serial Interface

• Console Port: 1 x 3-pin header to DB9 console port
• Data Bits: 5, 6, 7, 8
• Parity: None, Even, Odd, Space, Mark
• Stop Bits: 1, 1.5, 2
• Baudrate: 9600 bps to 115.2 kbps
• No. of Ports: 1
• Serial Standards: RS-232/422/485

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Cellular Interface

• Cellular Standards: 5G Release 15
• Frequency Bands Supported: 5G: n1 (FDD 2100) MHz / n3 (FDD 1800) MHz / n28 (FDD 700) MHz / n41 (TDD 2500) MHz / n48 (TDD 3600) MHz / n77 (TDD 3700) MHz / n78 (TDD 3500) MHz4G: LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 28 (700 MHz) / LTE Band 38 (2600 MHz)
• Data Rate: 950 Mbps DL, 450 Mbps UL
• No. of SIMs: 2 Push-eject tray type
• SIM Format: Nano SIM
• Cellular Antenna Connectors: 6 x SMA female

LED Indicators

• System: Power x 1 SIM card indicator x 1 5G / LTE indicator x 1
• Wireless Signal Strength: Cellular x 3

Power Parameters

• Input Voltage: 9 to 24 VDC
• Power Consumption: Average: 8 W Peak: 11 W
• Input Current: 9 to 24 VDC @ 1.33 to 0.5 A min
• Power Connector: Terminal block

Physical Characteristics

• Dimensions: 100 x 125 x 35.2 mm (3.93 x 4.92 x 1.38 in)
• Housing: Metal SECC
• Installation: DIN-rail mounting Wall mounting (with optional kit)
• IP Rating: The rubber SIM cover and console port cover should be attached. For CCG-1520-T, the SMA protection cover must also be attached.
• Weight: 750 g (1.65 lb)

Environmental Limits

• Operating Temperature: -40 to 70°C (-40 to 158°F)
• Storage Temperature (package included): -20 to 70°C (-4 to 158°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

MTBF

• Time: 1,036,724 hrs
• Standards: Telcordia Standard SR-332

Warranty

• Warranty Period: 5 years
• Details: See www.moxa.com/warranty

Ethernet Software Features

• Configuration Options: Web Console (HTTPS)
• Management: Account Permission
• Network Protocols: LwM2M Client
• Firewall: Filter: ICMP, IP Address, DoS
• Routing: IP Passthrough Modbus RTU to TCP
• Time Management: NTP Client
• Tunneling: VXLAN

Standards and Certifications

• EMC: EN 61000-6-2/-6-4
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: This device demonstrates a capacity that exceeds the requirements set by certification standards.
• EMS: support up to Contact:8kV ; Air: 15kV
• EMS: IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 16000-4-3 RS: 1.8 GHz to 5 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 16000-4-5 Surge: DC: L-G: 2 kV; LAN: L-G: 2 kV; Serial port: 0.5 Kv
• EMS: support up to 1kV
• EMS: IEC 16000-4-6 CS: 0.15 MHz to 10 MHz: 3V; 10 MHz to 30 MHz: 3~1 V; 30 MHz to 80 MHz: 1V
• EMS: support up to 0.15MHz ~ 80MHz: 10V
• EMS: IEC 61000-4-8 PFMF
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-64
• Cybersecurity: EN 18031-1
• Radio Frequency: FCC
• Radio: NCC: CCAF235G0270T2 TELEC JATE

Input/Output Interface

• Buttons: Reset button

USB Interface

• No. of USB Ports: 1
• USB Connector: USB Type A
• USB Standards: USB 3.0

LED Interface

• LED Indicators: SIG, P/S, SIM1/2, 4G/5G

Wireless Software Features

• Management: Keep Alive

Firewall

• Filter: ICMP IP address DoS

NAT

• Features: Port forwarding VPN Passthrough

Available Models

Model No.	Description	Quantity
CCG-1510-TW-T	Industrial private 5G cellular gateway, n1/n3/n28/n41/n78 bands for TW, 2 10/100/1000BaseT(X) RJ45 ports, IP30, -40 to 70°C operating temperature
CCG-1510-US-T	Industrial private 5G cellular gateway, n48 band for US, 2 10/100/1000BaseT(X) RJ45 ports, IP30, -40 to 70°C operating temperature
CCG-1520-T	Industrial private 5G cellular gateway, n79 band, 2 10/100/1000BaseT(X) RJ45 ports, IP30, -40 to 70°C operating temperature
CCG-1510-T	Industrial private 5G cellular gateway, n1/n3/n28/n41/n48/n77/n78 bands, 2 10/100/1000BaseT(X) RJ45 ports, IP30, -40 to 70°C operating temperature
