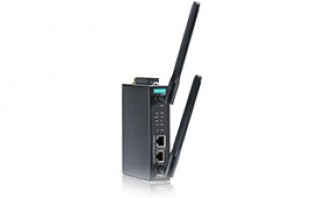

ONCELL G3110-HSPA/ONCELL G3150-HSPA

1-port five-band industrial GSM/GPRS/EDGE/UMTS/HSPA IP gateway, RS-232/422/485, -30 to 70°C operating temperature

Five band UMTS/HSPA 800/850/AWS/1900/2100 MHz
Quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz
Redundant DC power inputs
Connect to Ethernet and serial devices over an integrated VPN
2 digital inputs and 1 relay output
Centralize private IP management software with OnCell Central Manager

Cellular Interface

  • Standards: GSM/GPRS/EDGE/UMTS/HSPA
  • Band Options: • Five-band UMTS/HSPA 800/850/AWS/1900/2100 MHz • Quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz
  • HSPA Data Rate: 14.4 Mbps DL, 5.76 Mbps UL
  • EDGE Multi-slot Class: Class 12
  • EDGE Data Rate: 237 kbps DL, 237 kbps UL
  • EDGE Terminal Device Class: Class B
  • GPRS Multi-slot Class: Class 12
  • GPRS Data Rate: 85.6 kbps DL, 85.6 kbps UL
  • GPRS Terminal Device Class: Class B
  • GPRS Coding Schemes: CS1 to CS4
  • Tx Power: UMTS/HSPA: 0.25 W EDGE900: 0.5 W EDGE1800: 0.4 W GSM1800: 1 W GSM900: 2 W

LAN Interface

  • Number of Ports: 1
  • Ethernet: 10/100 Mbps, RJ45 connector, auto MDI/MDIX

Interface

  • Cellular Antenna Connectors: 1, SMA (female)

I/O Interface

  • Alarm Contact: 1 relay output with current carrying capacity of 1 A @ 24 VDC
  • Digital Inputs: 2 electrically isolated inputs• +13 to +30 V for state “1” • +3 to -30 V for state “0”

Software

  • Network Protocols: ARP, DDNS, DHCP/BOOTP, DNS Relay, HTTP, HTTPS, ICMP, IPSec, SMTP, SNTP, SSH, SSL, TCP/IP, Telnet, UDP
  • Routing/Firewall: NAT, port forwarding, WAN IP filtering
  • Cellular Connectivity: GuaranLink
  • Serial Security: Accessible IP list
  • Serial Operation Modes: Real COM, Reverse Real COM, TCP Server, TCP Client, UDP, SMS Tunnel, RFC2217, Secure Real COM, Secure Reverse Real COM, Secure TCP Server, Secure TCP Client, Ethernet Modem
  • Windows Real COM Drivers: Windows 2000/XP/2003/Vista/7/Server 2008, Windows XP/2003/Vista/7/Server 2008 x64 Edition / Windows 8 / Windows 10
  • Fixed TTY Drivers: SCO Unix, SCO OpenServer 5, SCO OpenServer 6, UnixWare 7, SVR4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD 5, FreeBSD 6
  • Linux Real TTY Drivers: Linux kernels 2.2.x, 2.4.x, 2.6.x
  • Authentication: Local username and password

Management Software

  • Utilities: Wireless Search Utility
  • Configuration and Management Options: SNMP v1/v2c/v3, Web/Telnet/Serial Console, SSH, Remote SMS Control, Caller ID, Auto IP Report
  • Centralized Device Management, Monitoring and Private IP Solution: OnCell Central Manager

SIM Interface

  • Number of SIMs: 1
  • SIM Control: 3 V

Serial Interface

  • Number of Ports: 1
  • Serial Standards: OnCell G3110-HSPA: RS-232 (DB9 male connector) OnCell G3150-HSPA: RS-232 (DB9 male connector), RS-422/485 (5-pin terminal block connector)

Serial Communication Parameters

  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2 (when parity = None)
  • Parity: None, Even, Odd, Space, Mark
  • Flow Control: RTS/CTS, XON/XOFF
  • Baudrate: 50 bps to 921.6 kbps

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND

Physical Characteristics

  • Housing: Aluminum, providing IP30 protection
  • Weight: 445 g (0.98 lb)
  • Dimensions: 28 x 126 x 93 mm (1.1 x 4.94 x 3.64 in)

Environmental Limits

  • Operating Temperature: Standard Models: -30 to 55°C (-22 to 131°F) Wide Temp. Models: -30 to 70°C (-22 to 158°F)
  • Storage Temperature: -40 to 75°C (-40 to 167°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Power Requirements

  • Number of Power Inputs: 2 (terminal block), redundant dual inputs
  • Input Voltage: 12 to 48 VDC
  • Input Current: 0.9 A @ 12 VDC; 0.23 A @ 48 VDC
  • Reverse Polarity Protection: Present

Standards and Certifications

  • Safety: UL 60950-1
  • EMC: EN 55032/24
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8
  • Radio: FCC Part 22H, FCC Part 24E, EN 301 489-1, EN 301 489-7, EN 301 489-24, EN 301 511, EN 301 908

MTBF (mean time between failures)

  • Time: 380,000 hrs
  • Standard: Telcordia SR332

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

available models

Model No. Description Quantity
OnCell G3110-HSPA 1-port five-band industrial GSM/GPRS/EDGE/UMTS/HSPA IP gateway, RS-232, -30 to 55°C operating temperature
OnCell G3150-HSPA 1-port five-band industrial GSM/GPRS/EDGE/UMTS/HSPA IP gateway, RS-232/422/485, -30 to 55°C operating temperature
OnCell G3110-HSPA-T 1-port five-band industrial GSM/GPRS/EDGE/UMTS/HSPA IP gateway, RS-232, -30 to 70°C operating temperature
OnCell G3150-HSPA-T 1-port five-band industrial GSM/GPRS/EDGE/UMTS/HSPA IP gateway, RS-232/422/485, -30 to 70°C operating temperature

optional accessories

Model No. Description Quantity
CRF-SMA(M)/N(M)-300 N-type (male) to SMA (male), CFD200 cable, 3 m
A-CRF-SMSF-R3-100 Cellular magnetic-base SMA connector with 1-meter RF cable
ANT-LTE-ANF-04 Full-band GSM/GPRS/EDGE/UMTS/HSPA/LTE, 4 dBi, omni-directional IP66 outdoor antenna
ANT-WCDMA-AHSM-04-2.5m Five-band GSM/GPRS/EDGE/UMTS/HSPA, 4 dBi, omni-directional, magnetic base antenna
ANT-WCDMA-ANF-00 Five-band GSM/GPRS/EDGE/UMTS/HSPA, 0 dBi, omni-directional, outdoor antenna
ANT-WCDMA-ASM-1.5 Five-band GSM/GPRS/EDGE/UMTS/HSPA, 1.5 dBi, omni-directional, rubber duck antenna
ANT-LTEUS-ASM-01 GSM/GPRS/EDGE/UMTS/HSPA/LTE, 1 dBi, omni-directional, rubber duck antenna
ANT-LTE-ASM-02 GPRS/EDGE/UMTS/HSPA/LTE, 2 dBi, omni-directional, rubber duck antenna
