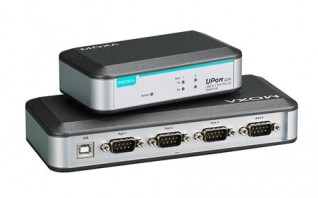

UPORT 2210/2410 SERIES
2-port RS-232 USB-to-serial converter
USB Interface
- Speed: 12 Mbps, 480 Mbps
- USB Connector: USB Type B
- USB Standards: USB 1.1/2.0 compliant
Serial Interface
- Serial Standards: RS-232
- No. of Ports: 2
- Connector: DB9 male
- Baudrate: 50 bps to 921.6 kbps
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: None RTS/CTS XON/XOFF
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power Parameters
- Input Voltage: 5 VDC
- Input Current: 140 mA @ 5 VDC
Physical Characteristics
- Housing: Polycarbonate (PC)
- Dimensions: 70 x 35 x 120 mm (2.76 x 1.38 x 4.72 in)
- Weight: UPort 2210: 120 g (0.26 lb)UPort 2410: 210 g (0.46 lb)
Environmental Limits
- Operating Temperature: 0 to 55°C (32 to 131°F)
- Storage Temperature (package included): -20 to 75°C (-4 to 167°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/24
- EMI: CISPR 32, FCC Part 15B Class B
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
- Safety: UL 60950-1
- Vibration: IEC 60068-2-6
- Freefall: IEC 60068-2-32
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 4,221,778 hrs
- Standards: Telcordia (Bellcore), GB
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
Serial Software Features
- Windows Drivers: Windows 10 (x86/x64) Windows 8.1 Windows 8 Windows 7 Windows Vista Windows XP Windows Server 2019 Windows Server 2016 Windows Server 2012 R2 Windows 2012 R2 Windows Server 2012 Windows Server 2008 R2 Windows Server 2008 Windows 2003 Windows 2000
- Linux Drivers: Linux kernel 5.x Linux kernel 4.x Linux kernel 3.x Linux kernel 2.6.x
- Arm®-based Platform Support: Linux Kernel 5.x / 4.x
- Mac Drivers: macOS 11.3 macOS 11.2 macOS 11.1 macOS 11.0 macOS 10.15 macOS 10.14 macOS 10.13 macOS 10.12
- Virtual Machine: VMware Fusion (Windows on macOS 10.12 to 11.x) Parallels Desktop (Windows on macOS 10.12 to 11.x)
