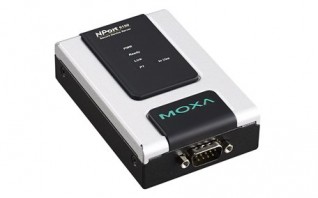

NPORT 6100/6200 SERIES

1-port RS-232/422/485 secure device server
nport-61006200-series
Secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
Supports nonstandard baudrates with high precision
NPort 6250: Choice of network medium: 10/100BaseT(X) or 100BaseFX
Enhanced remote configuration with HTTPS and SSH
Port buffers for storing serial data when the Ethernet is offline
Supports IPv6
Generic serial commands supported in Command-by-Command mode
Security features based on IEC 62443

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 1
  • Magnetic Isolation Protection: 1.5 kV (built-in)
  • Optical Fiber: 1
  • Optical Fiber: 100BaseFX
  • Optical Fiber: Multi-Mode
  • Optical Fiber: Single-Mode
  • Optical Fiber: Fiber Cable Type
  • Optical Fiber: OM1
  • Optical Fiber: 50/125 µm
  • Optical Fiber: G.652
  • Optical Fiber: 800 MHz x km
  • Optical Fiber: Typical Distance
  • Optical Fiber: 4 km
  • Optical Fiber: 5 km
  • Optical Fiber: 40 km
  • Optical Fiber: Wavelength
  • Optical Fiber: Typical (nm)
  • Optical Fiber: 1300
  • Optical Fiber: 1310
  • Optical Fiber: TX Range (nm)
  • Optical Fiber: 1260 to 1360
  • Optical Fiber: 1280 to 1340
  • Optical Fiber: RX Range (nm)
  • Optical Fiber: 1100 to 1600
  • Optical Fiber: 1100 to 1600
  • Optical Fiber: Optical Power
  • Optical Fiber: TX Range (dBm)
  • Optical Fiber: -10 to -20
  • Optical Fiber: 0 to -5
  • Optical Fiber: RX Range (dBm)
  • Optical Fiber: -3 to -32
  • Optical Fiber: -3 to -34
  • Optical Fiber: Link Budget (dB)
  • Optical Fiber: 12
  • Optical Fiber: 29
  • Optical Fiber: Dispersion Penalty (dB)
  • Optical Fiber: 3
  • Optical Fiber: 1
  • Optical Fiber: Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Ethernet Software Features

  • Configuration Options: Web Console (HTTP/HTTPS) Windows Utility Device Search Utility (DSU) MCC Tool Serial Console Telnet/SSH Console
  • Management: ARP BOOTP DHCP Client DNS HTTP ICMP IPv4/IPv6 LLDP PPPOE SMTP SNMPv1/v2c/v3 SNTP TCP/IP Telnet UDP
  • Windows Real COM Drivers: Windows 11/10/8.1/8/7/Vista/XP/ME/98/95 Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003 Windows Embedded CE 6.0/5.0, Windows XP Embedded
  • Fixed TTY Drivers: macOS Versions: 11.x, 10.12 to 10.15 SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
  • Linux Real TTY Drivers: Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
  • Android API: Android 3.1.x and later
  • MIB: MIB-II
  • Unicast Routing: RIPV1/V2 Static Route
  • Time Management: SNTP Client
  • Authentication: Local Account Accessibility, RADIUS, TACACS+
  • Arm®-based Platform Support: Linux Kernel 5.x/4.x
  • Virtual Machine: VMWare ESXi (Windows 11/10) VMware Fusion (Windows on macOS 10.12 to 11.x)Parallels Desktop (Windows on macOS 10.12 to 11.x)

Serial Interface

  • Connector: DB9 male
  • No. of Ports: 1
  • Serial Standards: RS-232 RS-422 RS-485
  • Secure Operation Modes: Reverse SSH Secure Pair Connection Secure Real COM Secure TCP Client Secure TCP Server SSH
  • Standard Operation Modes: Disabled Ethernet Modem Pair Connection PPP Printer Real COM Reverse Telnet RFC2217 TCP Client TCP Server Terminal UDP
  • Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • Flow Control: RTS/CTS DTR/DSR XON/XOFF
  • Parity: None, Even, Odd, Space, Mark
  • Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485: 120 ohms
  • RS-485 Data Direction Control: Automatic Data Direction Control (ADDC)

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND

Power Parameters

  • Input Current: 285 mA @ 12 to 48 VDC
  • Input Voltage: 12 to 48 VDC

Reliability

  • Automatic Reboot Trigger: Built-in WDT
  • Alert Tools: Built-in buzzer and RTC (real-time clock)

Physical Characteristics

  • Housing: Metal
  • Dimensions (with ears): 90 x 100.4 x 29 mm (3.54 x 3.95 x 1.1 in)
  • Dimensions (without ears): 67 x 100.4 x 29 mm (2.64 x 3.95 x 1.1 in)
  • Weight: 190 g (0.42 lb)
  • Installation: Desktop DIN-rail mounting (with optional kit) Wall mounting

Environmental Limits

  • Operating Temperature: 0 to 55°C (32 to 131°F)
  • Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032/35
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV(AC), 0.5 kV(DC); Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF IEC 61000-4-11
  • Safety: UL 60950-1 UL 62368-1
  • Traffic Control: NEMA TS2
  • Vibration: IEC 60068-2-6
  • Freefall: IEC 60068-2-34

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 1,934,102 hrs
  • Standards: Telcordia (Bellcore) Standard TR/SR

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Security Functions

  • Authentication: Local database RADIUS TACACS+
  • Encryption: HTTPS AES-128 AES-256 HMAC RSA-1024 SHA-1 SHA-256 SHA-384
  • Security Protocols: HTTPS (TLS 1.2) SNMPv3 SSHv2

Available Models

Model No. Description Quantity
NPort 6250-M-SC 2-port RS-232/422/485 to multi-mode fiber (SC connector) secure device server
NPort 6250-S-SC-T 2-port RS-232/422/485 to single-mode fiber (SC connector) secure device server, -40 to 75°C operating temperature
NPort 6150-T 1-port RS-232/422/485 secure device server, -40 to 75°C operating temperature
NPort 6250-T 2-port RS-232/422/485 to Ethernet secure device server, -40 to 75°C operating temperature
NPort 6150 1-port RS-232/422/485 secure device server
NPort 6250-S-SC 2-port RS-232/422/485 to single-mode fiber (SC connector) secure device server
NPort 6250 2-port RS-232/422/485 to Ethernet secure device server
NPort 6250-M-SC-T 2-port RS-232/422/485 to multi-mode fiber (SC connector) secure device server, -40 to 75°C operating temperature
