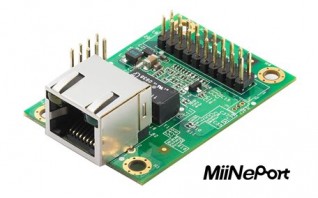

MIINEPORT E3 SERIES
Embedded device server for TTL devices, pin header module, 10/100M with RJ45 connector, 50 bps to 230.4 Kbps baudrate, 0 to 55°C operating temperature
IEEE 802.3af compliant PoE passthrough
Use Moxa’s high-quality and reliable second-generation MiiNe SoC
Variety of operation modes fulfill specific application requirements
Green design with extremely low power consumption
MiiNePort NetEZ technology makes integration incredibly easy
Highly compact embedded device module
Use Moxa’s high-quality and reliable second-generation MiiNe SoC
Variety of operation modes fulfill specific application requirements
Green design with extremely low power consumption
MiiNePort NetEZ technology makes integration incredibly easy
Highly compact embedded device module
Embedded System
- CPU: 32-bit Arm Core
Memory
- Flash: 2 MB
- SDRAM: 4 MB
Input/Output Interface
- Configurable DIO Channels (by software): 4
Ethernet Interface
- Magnetic Isolation Protection: 1.5 kV (built-in)
- PoE Pass-through: IEEE 802.3af for PoE
- 10/100BaseT(X) Ports, Auto MDI/MDI-X: 8-pin RJ45
Ethernet Software Features
- Configuration Options: Web Console (HTTP), Windows Utility
- Management: ARP, BOOTP, Device Search Utility (DSU), DHCP Client, IPv4, SMTP, SNMPv1, TCP/IP, Telnet, TFTP, UDP, ICMP
- Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
- Linux Real TTY Drivers: Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
- Fixed TTY Drivers: SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
- Android API: Android 3.1.x and later
Serial Interface
- No. of Ports: 1
- Serial Standards: TTL
- Operation Modes: Real COM mode, TCP Server mode, TCP Client mode, UDP mode, RFC2217 mode, Ethernet Modem mode
- Baudrate: 50 bps to 230.4 kbps
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: None, RTS/CTS, DTR/DSR, XON/XOFF
Serial Signals
- TTL: • TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST (reset circuit), GND
NetEZ Technology
- NetEZ Functions: EZPower, EZPage, SCM (Serial Command Mode), AutoCFG
Power Parameters
- Input Current: 157 mA @ 3.3 VDC
- Input Voltage: 3.3 to 5 VDC
Physical Characteristics
- Dimensions: 35 x 52.5 x 18 mm (1.38 x 2.07 x 0.71 in)
- Weight: 12 g (0.03 lb)
Environmental Limits
- Operating Temperature: 0 to 55°C (32 to 131°F)
- Storage Temperature (package included): -40 to 60°C (-40 to 140°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/24
- EMI: CISPR 32, FCC Part 15B Class B
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs
- Environmental Testing: IEC 60068-2-1 IEC 60068-2-3
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Freefall: IEC 60068-2-6
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 5,696,350 hrs
- Standards: Telcordia SR332
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
