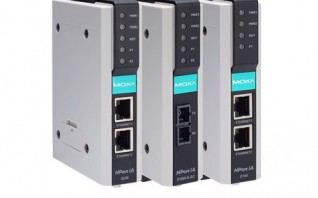

NPORT IA5000 SERIES

1-port RS-232/422/485 device server with 2 10/100BaseT(X) ports (RJ45 connectors, single IP), 0 to 55°C operating temperature
Socket modes: TCP server, TCP client, UDP
ADDC (Automatic Data Direction Control) for 2-wire and 4-wire RS-485
Cascading Ethernet ports for easy wiring (applies only to RJ45 connectors)
Redundant DC power inputs
Warnings and alerts by relay output and email
10/100BaseTX (RJ45) or 100BaseFX (single mode or multi-mode with SC connector)
IP30-rated housing

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 2 (1 IP, Ethernet cascade, NPort IA-5150/5150I/5250/5250I)
  • Magnetic Isolation Protection: 1.5 kV (built-in)
  • 100BaseFX Ports (multi-mode SC connector): 1 (-M-SC models)
  • 100BaseFX Ports (single-mode SC connector): 1 (-S-SC models)
  • Optical Fiber: Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
  • Optical Fiber: 100BaseFX
  • Optical Fiber: Multi-Mode
  • Optical Fiber: Single-Mode
  • Optical Fiber: Fiber Cable Type
  • Optical Fiber: OM1
  • Optical Fiber: 50/125 µm
  • Optical Fiber: G.652
  • Optical Fiber: 800 MHz x km
  • Optical Fiber: Typical Distance
  • Optical Fiber: 4 km
  • Optical Fiber: 5 km
  • Optical Fiber: 40 km
  • Optical Fiber: Wavelength
  • Optical Fiber: Typical (nm)
  • Optical Fiber: 1300
  • Optical Fiber: 1310
  • Optical Fiber: TX Range (nm)
  • Optical Fiber: 1260 to 1360
  • Optical Fiber: 1280 to 1340
  • Optical Fiber: RX Range (nm)
  • Optical Fiber: 1100 to 1600
  • Optical Fiber: 1100 to 1600
  • Optical Fiber: Optical Power
  • Optical Fiber: TX Range (dBm)
  • Optical Fiber: -10 to -20
  • Optical Fiber: 0 to -5
  • Optical Fiber: RX Range (dBm)
  • Optical Fiber: -3 to -32
  • Optical Fiber: -3 to -34
  • Optical Fiber: Link Budget (dB)
  • Optical Fiber: 12
  • Optical Fiber: 29
  • Optical Fiber: Dispersion Penalty (dB)
  • Optical Fiber: 3
  • Optical Fiber: 1
  • Optical Fiber: Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Ethernet Software Features

  • Configuration Options: Web Console (HTTP), Windows Utility, Telnet Console, Serial Console
  • Management: DHCP Client, IPv4, SMTP, SNMPv1, Telnet, ARP, BOOTP, DNS, HTTP, TCP/IP, UDP, ICMP, Rtelnet
  • Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Fixed TTY Drivers: SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15
  • Linux Real TTY Drivers: Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
  • Android API: Android 3.1.x and later
  • Time Management: SNTP
  • MIB: RFC1213, RFC1317

Serial Interface

  • Connector: DB9 male for RS-232 and terminal block for RS-422/485
  • No. of Ports: 1
  • Serial Standards: RS-232, RS-422, RS-485
  • Baudrate: Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400
  • Data Bits: 5, 6, 7, 8
  • Parity: None, Even, Odd, Space, Mark
  • Stop Bits: 1, 1.5, 2
  • Flow Control: RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
  • Isolation: 2 kV isolation protection (NPort IA-5150I, NPort IA-5150I-M-SC, NPort IA-5150I-S-SC)
  • Terminator for RS-485: 120 ohms
  • Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
  • RS-485 Data Direction Control: ADDC (automatic data direction control)

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND

Power Parameters

  • Input Current: 435 mA @ 12 VDC
  • Input Voltage: 12 to 48 VDC
  • No. of Power Inputs: 2
  • Power Connector: Terminal block

Physical Characteristics

  • Housing: Plastic
  • IP Rating: IP30
  • Dimensions: 29 x 89.2 x 118.5 mm (0.82 x 3.51 x 4.57 in)
  • Weight: 360 g (0.79 lb)
  • Installation: DIN-rail mounting

Environmental Limits

  • Operating Temperature: 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 167°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • Freefall: IEC 60068-2-32
  • EMC: EN 55032/35
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF IEC 61000-4-11
  • Safety: IEC 60950-1, EN 60950-1, EN 62368-1, UL 508
  • Vibration: IEC 60068-2-6, IEC 60068-2-64
  • Hazardous Locations: ATEX, Class I Division 2, IECEx
  • Maritime: DNV
  • Shock: IEC 60068-2-27

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 1,349,710 hrs
  • Standards: Telcordia (Bellcore) Standard TR/SR

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Relays

  • Contact Current Rating: Resistive load: 1 A @ 30 VDC

Security Functions

  • Authentication: Local database (password only)

Available Models

Model No. Description Quantity
NPort IA-5150
NPort IA-5150-T
NPort IA-5150I
NPort IA-5150I-T
NPort IA-5150-M-SC
NPort IA-5150-M-SC-T
NPort IA-5150I-M-SC
NPort IA-5150I-M-SC-T
NPort IA-5150-S-SC
NPort IA-5150-S-SC-T
NPort IA-5150I-S-SC
NPort IA-5150I-S-SC-T
NPort IA-5250
NPort IA-5250-T
NPort IA-5150-M-ST-T NPort IA-5150-M-ST-T
NPort IA-5250I-T NPort IA-5250I-T
NPort IA-5250I NPort IA-5250I
NPort IA-5150-M-ST NPort IA-5150-M-ST
