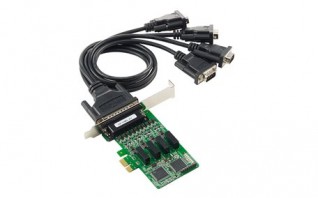

CP-134EL-A-I SERIES

4-port RS-422/485 low-profile PCI Express board with 4 kV surge protection, 2 kV electrical isolation, DB25 male cable, 0 to 55°C operating temperature
cp-134el-a-i-series
PCI Express 1.0 compliant
921.6 kbps maximum baudrate for fast data transmission
128-byte FIFO and on-chip S/W flow control
Variety of connection cables and boxes available for RS-232/422/485
Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
Easy maintenance with built-in LEDs and management software

Serial Interface

  • Comm. Controller: 16C550C compatible
  • Bus: PCI Express 1.0
  • Connector: DB44 female
  • FIFO: 128 bytes
  • Max. No. of Boards per PC: 8
  • No. of Ports: 4
  • Serial Standards: RS-422 RS-485
  • Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • Parity: None Even Odd Space Mark
  • Flow Control: None XON/XOFF
  • Isolation: 2 kV
  • Surge: 4 kV

Serial Signals

  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND

Serial Software Features

  • Linux Drivers: Linux kernel 5.x Linux kernel 4.x Linux kernel 3.x Linux kernel 2.6.x Linux kernel 2.4.x
  • Windows Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64)/2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • UNIX Drivers: Solaris 10 UnixWare 7 SCO OpenServer 5 SCO OpenServer 6
  • Arm®-based Platform Support: Linux Kernel 5.x / 4.x

Power Parameters

  • Input Current: 3,414 mA @ 3.3 VDC

Physical Characteristics

  • Dimensions: 67.21 x 103 mm (2.65 x 4.06 in)

LED Interface

  • LED Indicators: Built-in Tx, Rx LEDs for each port

Environmental Limits

  • Operating Temperature: 0 to 55°C (32 to 131°F)
  • Storage Temperature (package included): -20 to 85°C (-4 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032/35
  • EMI: CISPR 32, FCC Part 15B Class B
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 433,077 hrs
  • Standards: Telcordia (Bellcore) Standard TR/SR

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
CP-134EL-A-I w/o cable 4-port RS-422/485 low-profile PCI Express x1 serial board with surge protection and electrical isolation
CP-134EL-A-I-DB9M 4-port RS-422/485 low-profile PCI Express board with 4 kV surge protection, 2 kV electrical isolation, DB9 male cable, 0 to 55°C operating temperature
CP-134EL-A-I-DB25M 4-port RS-422/485 low-profile PCI Express board with 4 kV surge protection, 2 kV electrical isolation, DB25 male cable, 0 to 55°C operating temperature
