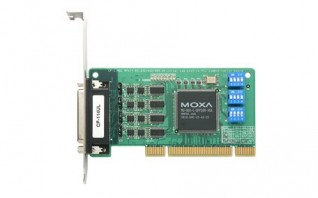

CP-114UL SERIES
4-port RS-232/422/485 low-profile Universal PCI serial board, 0 to 55°C operating temperature (includes DB25 male cable)
Over 700 kbps data throughput for top performance
128-byte FIFO and on-chip H/W, S/W flow control
Universal PCI compatible with 3.3/5 V PCI and PCI-X
921.6 kbps maximum baudrate for fast data transmission
Drivers provided for a broad selection of operating systems, including Windows and Linux
Easy maintenance with built-in LEDs
Wide-temperature model available for -40 to 85°C environments
128-byte FIFO and on-chip H/W, S/W flow control
Universal PCI compatible with 3.3/5 V PCI and PCI-X
921.6 kbps maximum baudrate for fast data transmission
Drivers provided for a broad selection of operating systems, including Windows and Linux
Easy maintenance with built-in LEDs
Wide-temperature model available for -40 to 85°C environments
Serial Interface
- Comm. Controller: MU860 (16C550C compatible)
- Bus: 32-bit Universal PCI
- Connector: DB44 female
- FIFO: 128 bytes
- Max. No. of Boards per PC: 8
- No. of Ports: 4
- Serial Standards: RS-232, RS-422, RS-485
- Baudrate: 50 bps to 921.6 kbps
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Flow Control: None, RTS/CTS, XON/XOFF
- Parity: None, Even, Odd, Space, Mark
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
Serial Software Features
- Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
- Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
- UNIX Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
Power Parameters
- Input Current: 320 mA @ 5 VDC
Physical Characteristics
- Dimensions: 64.4 x 120 mm (2.53 x 4.72 in)
LED Interface
- LED Indicators: Built-in Tx, Rx LEDs for each port
Environmental Limits
- Operating Temperature: 0 to 55°C (32 to 131°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class B
- EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 114,223 hrs
- Standards: Telcordia SR332
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
