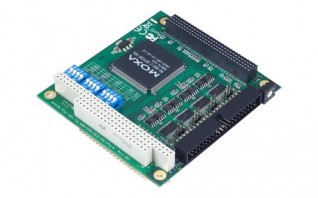

CB-114 SERIES

PC/104-Plus bus, 4-port RS-232/422/485 module, 0 to 55°C operating temperature
cb-114-series
921.6 kbps maximum baudrate for fast data transmission
On-chip hardware and software flow control
Serial interface is DIP switch selectable
Onboard Tx and Rx LED indicators for each port
Supports Windows, Windows CE 5.0/6.0, and Windows XP Embedded operating systems
Wide-temperature model available for -40 to 85°C environments

Serial Interface

  • Comm. Controller: 16C550C or compatible x 4
  • Bus: PC/104 plus bus
  • Connector: 40-pin box header
  • DIP Switches: Serial interface
  • IRQ: Assigned by BIOS
  • I/O Address: Assigned by BIOS
  • FIFO: 128 bytes
  • Max. No. of Boards per PC: 8
  • No. of Ports: 4
  • Serial Standards: RS-232, RS-422, RS-485
  • Baudrate: 50 bps to 921.6 kbps
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • Parity: None, Even, Odd, Space, Mark
  • Flow Control: None, RTS/CTS, XON/XOFF

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND

Serial Software Features

  • Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x
  • UNIX Drivers: QNX 6, Solaris 10, UnixWare 7

Power Parameters

  • Input Current: 164 mA @ 5 VDC
  • Input Voltage: 5 VDC

Physical Characteristics

  • Dimensions: 90 x 96 mm (3.54 x 3.78 in)

LED Interface

  • LED Indicators: Built-in Tx, Rx LEDs for each port

Environmental Limits

  • Operating Temperature: 0 to 55°C (32 to 131°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032/24
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 0.5 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
  • Environmental Testing: IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3 IEC 60068-2-14
  • Safety: EN 60950-1, UL 60950-1
  • Vibration: IEC 60068-2-6

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 381,081 hrs
  • Standards: Telcordia (Bellcore), GB

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
CB-114-T PC/104-Plus bus, 4-port RS-232/422/485 module, -40 to 85°C operating temperature
CB-114 PC/104-Plus bus, 4-port RS-232/422/485 module, 0 to 55°C operating temperature
