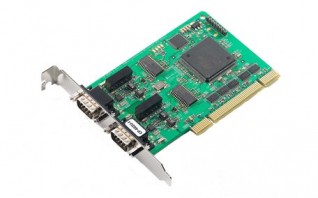

CP-602U-I SERIES

2-port CAN bus Universal PCI board with 2 kV electrical isolation, -40 to 85°C operating temperature
cp-602u-i-series
Supports CAN 2.0A and CAN 2.0B
Two independent CAN communication ports
CAN transfer rate up to 1 Mbps
2 kV electrical isolation
LED for transmit/receive status on each port
Optional 120-ohm terminal resistor for CAN bus network
DLL library and examples included
Windows driver provided

CAN Interface

  • Baudrate: 10/20/50/125/250/500/800/1000 kbps, user-defined
  • Connector: DB9 male
  • No. of Ports: 2

Environmental Limits

  • Operating Temperature: -40 to 85°C (-40 to 185°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032/35
  • EMI: CISPR 32, FCC Part 15B Class B
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 1,989,990 hrs
  • Standards: Telcordia SR332

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
CP-602U-I-T w/o Cable 2-port CAN bus Universal PCI board with 2 kV electrical isolation, -40 to 85°C operating temperature
CP-602U-I w/o Cable 2-port CAN bus Universal PCI board with 2 kV electrical isolation, 0 to 55°C operating temperature
