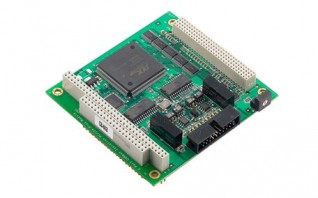

CB-602I SERIES

2-port CAN bus PC/104-Plus module, with isolation, -40 to 85°C operating temperature
cb-602i-series
Supports CAN 2.0A and CAN 2.0B
Two independent CAN communication ports
CAN transfer rate up to 1 Mbps
2 kV electrical isolation
LED for transmit/receive status on each port
Optional 120-ohm terminal resistor for CAN bus network
DLL library and examples included
Windows drivers provided

Serial Interface

  • Isolation: 2 kV
  • Max. No. of Boards per PC: 8

CAN Interface

  • Baudrate: 10/20/50/125/250/500/800/1000 kbps, user-defined
  • Connector: 20-pin box header
  • No. of Ports: 2

Environmental Limits

  • Operating Temperature: -40 to 85°C (-40 to 185°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032/24
  • EMI: CISPR 32, FCC Part 15B Class B
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 248,563 hrs
  • Standards: Telcordia (Bellcore), GB

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
CB-602I-T w/o Cable 2-port CAN bus PC/104-Plus module, with isolation, -40 to 85°C operating temperature
CB-602I w/o Cable 2-port CAN bus PC/104-Plus module, with isolation, 0 to 55°C operating temperature
