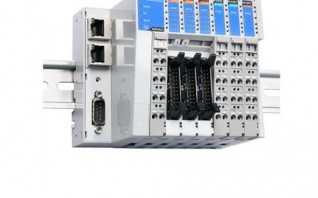

IOLOGIK 4000 SERIES (M) MODULES

Module for the ioLogik 4000 Series, 4 DIs, 110 VAC, -10 to 60°C operating temperature
I/O expansion without a backplane
Active communication with MX-AOPC UA Server
Supports SNMP v1/v2c
Easy configuration with Modular ioAdmin utility
Friendly configuration via web browser
Simplifies I/O management with MXIO library for Windows or Linux

Input/Output Interface

  • Digital Input Channels: 4
  • Isolation: 3k VDC or 2k Vrms

Digital Inputs

  • Connector: Spring-type Euroblock terminal
  • I/O Mode: DI
  • Points per COM: 2 channels

Digital Outputs

  • Current Rating: 500 mA per channel

Power Parameters

  • Power Consumption: 35 mA @ 5 VDC

Physical Characteristics

  • Housing: Plastic
  • Dimensions: 14.1 x 99 x 70 mm (0.56 x 3.90 x 2.76 in)
  • Weight: Under 80 g
  • Installation: DIN-rail mounting
  • Wiring: I/O cable, 14 to 28 AWG

Environmental Limits

  • Operating Temperature: -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032/24, EN 61000-6-2/-6-4
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
  • Safety: UL 508
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 19,482,240 hrs
  • Standards: Telcordia SR332

Warranty

  • Warranty Period: 2 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
M-1450 Module for the ioLogik 4000 Series, 4 DIs, 110 VAC, -10 to 60°C operating temperature
M-1451 Module for the ioLogik 4000 Series, 4 DIs, 220 VAC, -10 to 60°C operating temperature
M-1600 Module for the ioLogik 4000 Series, 16 DIs, 24 VDC, sink, -10 to 60°C operating temperature
M-1601 Module for the ioLogik 4000 Series, 16 DIs, 24 VDC, source, -10 to 60°C operating temperature
M-1800 Module for the ioLogik 4000 Series, 8 DIs, 24 VDC, sink, -10 to 60°C operating temperature
M-1801 Module for the ioLogik 4000 Series, 8 DIs, 24 VDC, source, -10 to 60°C operating temperature
M-2450 Module for the ioLogik 4000 Series, 4 relays, 24 VDC or 230 VAC, 2 A, -10 to 60°C operating temperature
M-2600 Module for the ioLogik 4000 Series, 16 DOs, 24 VDC, 0.5 A, sink, -10 to 60°C operating temperature
M-2601 Module for the ioLogik 4000 Series, 16 DOs, 24 VDC, 0.5 A, source, -10 to 60°C operating temperature
M-2800 Module for the ioLogik 4000 Series, 8 DOs, 24 VDC, 0.5 A, sink, -10 to 60°C operating temperature
M-2801 Module for the ioLogik 4000 Series, 8 DOs, 24 VDC, 0.5 A, source, -10 to 60°C operating temperature
M-3802 Module for the ioLogik 4000 Series, 8 AIs, 4 to 20 mA, 12 bits, -10 to 60°C operating temperature
M-3810 Module for the ioLogik 4000 Series, 8 AIs, 0 to 10 V, 12 bits, -10 to 60°C operating temperature
M-4402 Module for the ioLogik 4000 Series, 4 AOs, 4 to 20 mA, 12 bits, -10 to 60°C operating temperature
M-4410 Module for the ioLogik 4000 Series, 4 AOs, 0 to 10 V, 12 bits, -10 to 60°C operating temperature
M-6200 Module for the ioLogik 4000 Series, 2 RTDs, -10 to 60°C operating temperature
M-6201 Module for the ioLogik 4000 Series, 2 TCs, -10 to 60°C operating temperature
M-7001 Module for the ioLogik 4000 Series, system power module, -10 to 60°C operating temperature
M-7002 Module for the ioLogik 4000 Series, field power module, -10 to 60°C operating temperature
M-7804 Module for the ioLogik 4000 Series, potential distributor module, 0 VDC, -10 to 60°C operating temperature
M-7805 Module for the ioLogik 4000 Series, potential distributor module, 24 VDC, -10 to 60°C operating temperature
