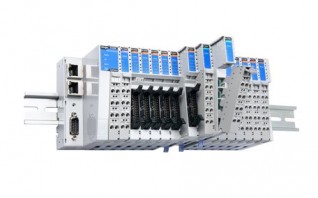

IOLOGIK 4000 SERIES

Universal controller, Active Ethernet network adapter (Modbus/TCP), Click&Go, -10 to 60°C operating temperature
I/O expansion without a backplane
Active communication with MX-AOPC UA Server
Supports SNMP v1/v2c
Easy configuration with Modular ioAdmin utility
Friendly configuration via web browser
Simplifies I/O management with MXIO library for Windows or Linux

Input/Output Interface

  • Buttons: Reset button

Control Logic

  • Language: Click&Go

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 2, 2 MAC addresses

Ethernet Software Features

  • Configuration Options: Web Console (HTTP), Windows Utility (Modular-ioAdmin)
  • Industrial Protocols: Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library, SNMPv1 Trap, SNMPv1/v2c
  • Management: DHCP Client, HTTP, IPv4, TCP/IP, UDP, Modular-ioAdmin

Modbus TCP

  • Max. No. of Client Connections: 8
  • Mode: Client (Master)

Power Parameters

  • No. of Power Inputs: 1

System Power Parameters

  • Power Connector: Spring-type Euroblock terminal
  • No. of Power Inputs: 1
  • Input Voltage: 11 to 28.8 VDC
  • Power Consumption: 175 mA @ 24 VDC

Field Power Parameters

  • Power Connector: Spring-type Euroblock terminal
  • No. of Power Inputs: 1
  • Input Voltage: 11 to 28.8 VDC
  • Current in Field Power Contact: 10 A (max.)

Physical Characteristics

  • Housing: Plastic
  • Dimensions: 45 x 99 x 70 mm (1.77 x 3.90 x 2.76 in)
  • Weight: 180 g (0.396 lb)
  • Installation: DIN-rail mounting

Environmental Limits

  • Operating Temperature: -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)
  • Altitude: 2000 m
  • Altitude: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

Standards and Certifications

  • EMC: EN 61000-6-2/-6-4
  • EMI: CISPR 22, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
  • Safety: UL 508
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 357,000 hrs
  • Standards: Telcordia SR332

Warranty

  • Warranty Period: 2 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
NA-4010 Universal I/O, Ethernet network adapter (Modbus/TCP), -10 to 60°C operating temperature
NA-4021 Universal I/O, RS-232 network adapter (Modbus/RTU), -10 to 60°C operating temperature
NA-4020 Universal I/O, RS-485 network adapter (Modbus/RTU), -10 to 60°C operating temperature
ioLogik E4200 Universal controller, Active Ethernet network adapter (Modbus/TCP), Click&Go, -10 to 60°C operating temperature
