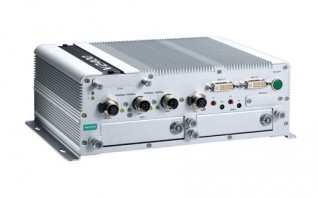

V2416A SERIES
x86 embedded computer with Intel® Celeron® 1047UE, 2 DVI-Is, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 1 OS CFast socket, 1 backup CFast socket, 4 GB of DDR3 RAM installed, two EN 50155 anti-vibration hot-swappable storage trays, 12 to 48 VDC power, conformal coating, -40 to 70°C operating temperature (EN 50155 Class TX)
Intel Celeron/Core i7 processor
Two hot-swappable 2.5-inch HDD or SSD storage expansion trays
Dual independent DVI-I displays
2 Gigabit Ethernet ports with M12 X-coded connectors
2 CFast sockets for OS backup
M12 A-coded power connector
Compliant with EN 50121-4
Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
IEC 61373 certified for shock and vibration resistance
Ready-to-run Debian 7, Windows Embedded Standard 7, and Windows 10 Embedded IoT Enterprise 2016 LTSB platforms
-40 to 70°C wide-temperature models available
Supports SNMP-based system configuration, control, and monitoring (Windows only)
Two hot-swappable 2.5-inch HDD or SSD storage expansion trays
Dual independent DVI-I displays
2 Gigabit Ethernet ports with M12 X-coded connectors
2 CFast sockets for OS backup
M12 A-coded power connector
Compliant with EN 50121-4
Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
IEC 61373 certified for shock and vibration resistance
Ready-to-run Debian 7, Windows Embedded Standard 7, and Windows 10 Embedded IoT Enterprise 2016 LTSB platforms
-40 to 70°C wide-temperature models available
Supports SNMP-based system configuration, control, and monitoring (Windows only)
Computer
- CPU: Intel® Celeron® Processor 1047UE (2M Cache, 1.40 GHz)
- System Memory Pre-installed: 4 GB DDR3
- System Memory Slot: SODIMM DDR3/DDR3L slot x 1
- Supported OS: Linux Debian 7 Windows Embedded Standard 7 (WS7E) 32-bit Windows Embedded Standard 7 (WS7E) 64-bit
- Storage Slot: CFast slot x 2
Computer Interface
- Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2
- Serial Ports: RS-232/422/485 ports x 4, software selectable (DB9 male)
- USB 2.0: USB 2.0 hosts x 1, M12 D-coded connector USB 2.0 hosts x 2, type-A connectors
- Audio Input/Output: Line in x 1, Line out x 1, M12 D-coded
- Digital Input: DIs x 6
- Digital Output: DOs x 2
- Video Input: DVI-I x 2, 29-pin DVI-D connectors (female)
Digital Inputs
- Isolation: 3k VDC
- Connector: Screw-fastened Euroblock terminal
- Dry Contact: On: short to GND Off: open
- I/O Mode: DI
- Sensor Type: Dry contact Wet contact (NPN or PNP)
- Wet Contact (DI to COM): On: 10 to 30 VDC Off: 0 to 3 VDC
Digital Outputs
- Connector: Screw-fastened Euroblock terminal
- Current Rating: 200 mA per channel
- I/O Type: Sink
- Voltage: 24 to 40 VDC
LED Indicators
- System: Power x 1 Storage x 1 Hot-swappable 2
- LAN: 2 per port (10/100/1000 Mbps)
- Serial: 2 per port (Tx, Rx)
Serial Interface
- Baudrate: 50 bps to 921.6 kbps
- Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
- Isolation: N/A
- Parity: None, Even, Odd, Space, Mark
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
- Input Voltage: 12 to 48 VDC
- Power Connector: M12 A-coded male connector
- Power Consumption (Max.): 3.3 A @ 12 VDC0.82 A @ 48 VDC
- Power Consumption: 40 W (max.)
Physical Characteristics
- Housing: Aluminum
- IP Rating: IP30
- Dimensions (with ears): 250 x 86 x 154 mm (9.84 x 3.38 x 6.06 in)
- Dimensions (without ears): 275 x 92 x 154 mm (10.83 x 3.62 x 6.06 in)
- Weight: 4,000 g (8.98 lb)
- Installation: DIN-rail mounting (optional), Wall mounting (standard)
- Protection: PCB conformal coating
Environmental Limits
- Operating Temperature: -40 to 70°C (-40 to 158°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/24
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
- Railway: EN 50121-4, IEC 60571
- Railway Fire Protection: EN 45545-2
- Safety: EN 60950-1, IEC 60950-1
- Shock: IEC 60068-2-27, IEC 61373, EN 50155
- Vibration: IEC 60068-2-64, IEC 61373, EN 50155
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 332,173 hrs
- Standards: Telcordia (Bellcore), GB
Warranty
- Warranty Period: 3 years
- Details: See www.moxa.com/warranty
