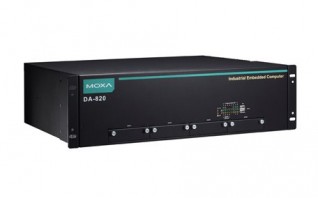

DA-820 SERIES
i3-3217UE, dual-core 1.6 GHz, 100 to 240 VAC/VDC x2, -40 to 75°C, without CFast/RAM/OS
IEC 61850-3, IEEE 1613, and IEC 60255 compliant for power substation automation systems
Intel® Celeron™/Intel® Core™ i3 and i7 CPU and QM77 chipset
1 CFast slot for the OS and 4 SATA III slots for storage expansion (supports Intel® RST RAID 0/1/5/10)
6 USB 2.0 ports for high-speed peripherals
3 PCIe x1 slots and 2 PCI slots for expansion modules
1 PCIe x16 slot for an additional video card
Highly reliable design, supporting dual power and PRP/HSR technology (with PRP/HSR expansion module)
Onboard TPM module for enhanced cybersecurity
Intel® Celeron™/Intel® Core™ i3 and i7 CPU and QM77 chipset
1 CFast slot for the OS and 4 SATA III slots for storage expansion (supports Intel® RST RAID 0/1/5/10)
6 USB 2.0 ports for high-speed peripherals
3 PCIe x1 slots and 2 PCI slots for expansion modules
1 PCIe x16 slot for an additional video card
Highly reliable design, supporting dual power and PRP/HSR technology (with PRP/HSR expansion module)
Onboard TPM module for enhanced cybersecurity
Computer
- CPU: Intel® Core™ i3-3217UE Processor (3M Cache, 1.6 GHz)
- System Chipset: Mobile Intel® QM77 Express Chipset
- Graphics Controller: Intel® HD Graphics 4000 (integrated)
- System Memory Slot: SODIMM DDR3/DDR3L slot x 2
- Supported OS: Windows 7 Pro for Embedded Systems Windows Embedded Standard 7 (WS7P) 64-bit Linux Debian 7 Note: OS available by CTOS
- Storage Slot: 2.5-inch HDD/SSD slots x 4 CFast slot x 1
- DRAM: 16 GB max. capacity (204-pin SODIMM x 2, each supporting unbuffered ECC DDR3 memory at 1333 and 1600 MT/s and 8 GB maximum per module)
Computer Interface
- Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
- Serial Ports: RS-232/422/485 ports x 2, software selectable (DB9 male)
- USB 2.0: USB 2.0 hosts x 6, type-A connectors
- Expansion Slots: PCIe x1 slots x 3 PCIe x16 slot x 1 PCI slots x 2
- Video Input: VGA x 2, 15-pin D-sub connector (female)
LED Indicators
- System: Power x 1 Storage x 1 Programmable x 8
- LAN: 8 per port (10/100/1000 Mbps)
- Serial: 2 per port (Tx, Rx)
Serial Interface
- Baudrate: 50 bps to 115.2 kbps
- Connector: DB9 male
- ESD: 8 kV (level 4)
- Isolation: 2 kV
- Serial Standards: RS-232/422/485
- Surge: 2 kV
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
- Power Button: Reset button (front panel) ON/OFF (rear panel)
- Power Consumption: 60 W (max.)
Physical Characteristics
- Housing: Metal
- Dimensions (without ears): 361 x 440 x 133 mm (14.23 x 17.32 x 5.24 in)
- Weight: 14,000 g (31.11 lb)
- Installation: 19-inch rack mounting
Environmental Limits
- Operating Temperature: -40 to 75°C (-40 to 167°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-11 DIPs IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8: 20 A/m
- Power Substation: IEC 61850-3, IEEE 1613
- Protection Relay: IEC 60255
- Safety: EN 60950-1, IEC 60950-1, UL 60950-1
- Shock: IEC 60068-2-27, IEC 60870-2-2, IEC 61850-3 Edition 1.0
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 222,207 hrs
- Standards: Telcordia (Bellcore) Standard TR/SR
Warranty
- Warranty Period: 3 years
- Details: See www.moxa.com/warranty
