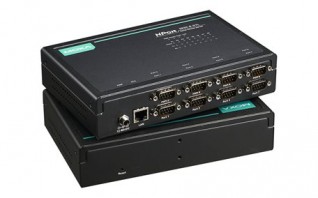

NPORT 5600-DTL SERIES

8-port RS-232 desktop device server with DB9 male connectors, 0 to 60°C operating temperature
8 serial ports supporting RS-232/422/485
Compact desktop design
10/100M auto-sensing Ethernet
Configure by Telnet, web browser, or Windows utility
Supports Real COM and TCP server, TCP client, UDP socket modes
SNMP MIB-II for network management

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 1
  • Magnetic Isolation Protection: 1.5 kV (built-in)

Ethernet Software Features

  • Configuration Options: Web Console (HTTP), Windows Utility, Telnet Console, Serial Console
  • Management: DHCP Client, HTTP, IPv4, SMTP, SNMPv1, Telnet, ARP, Rtelnet, DNS, BOOTP, UDP, TCP/IP, ICMP
  • Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Fixed TTY Drivers: SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
  • Linux Real TTY Drivers: Kernel version: 2.4.x, 2.6.x, 3.x, 4.x
  • Android API: Android 3.1.x and later
  • MIB: RFC1213, RFC1317
  • Time Management: SNTP

Serial Interface

  • Connector: DB9 male
  • No. of Ports: 8
  • Serial Standards: RS-232
  • Baudrate: Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • Parity: None, Even, Odd, Space, Mark
  • Flow Control: RTS/CTS, DTR/DSR, XON/XOFF
  • Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
  • RS-485 Data Direction Control: ADDC® (automatic data direction control)

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND

Power Parameters

  • Input Current: 340 mA @ 12 VDC
  • No. of Power Inputs: 1
  • Input Voltage: 12 to 48 VDC
  • Reverse Polarity Protection: Supported
  • Source of Input Power: Power input jack

Physical Characteristics

  • Housing: Metal
  • Dimensions (with ears): 229 x 135.43 x 46 mm (9.02 x 5.33 x 1.81 in)
  • Dimensions (without ears): 197 x 135.43 x 44 mm (7.76 x 5.33 x 1.73 in)
  • Weight: 1760 g (3.88 lb)
  • Installation: Desktop, DIN-rail mounting (with optional kit), Wall mounting (with optional kit)

Environmental Limits

  • Operating Temperature: 0 to 60°C (-32 to 140°F)
  • Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032/24
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs
  • Safety: UL 60950-1

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 953,388 hrs
  • Standards: Telcordia (Bellcore) Standard TR/SR

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty
