DA-682A-ETHERNET SERIES EXPANSION MODULES

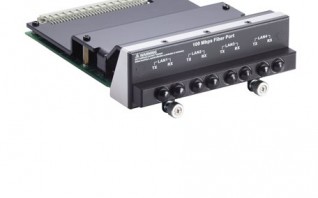

4-port (100BaseFX) fiber LAN module with multi-mode, ST connector, supports IP Teaming
4-port 10/100 Mbps LAN module
4-port 100 Mbps Fiber LAN module
8-port 10/100 Mbps unmanaged switch module

Ethernet Interface

  • 100BaseFX Ports (multi-mode ST connector): 4
  • Magnetic Isolation Protection: 1.5 kV (built-in)

Physical Characteristics

  • Dimensions (without ears): 132 x 150 mm (42 x 5.20 in)
  • Weight: 511 g (1.13 lb)

Environmental Limits

  • Operating Temperature: -25 to 60°C (-13 to 140°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 884,764
  • Standards: Telcordia (Bellcore), GB

Warranty

  • Warranty Period: 3 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
DA-LN04-RJ 4-port 10/100 Mbps LAN module
DA-SW08-RJ 8-port 10/100 Mbps unmanaged switch module
DA-FX04-MM-ST-T 4-port (100BaseFX) fiber LAN module with multi-mode, ST connector, supports IP Teaming
