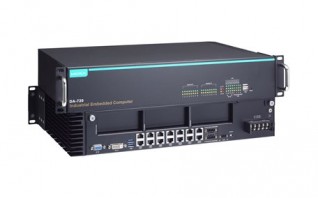

DA-720 SERIES

Rackmount computer with Core i7-6600U, 2.6 GHz, dual-core CPU, without mSATA/RAM/OS, 14 Gigabit Ethernet ports, 2 isolated RS-232/422/485 ports, 2 PCIe expansion slots, VGA x 1, DVI-D x 1, USB x 4, IEC 61850-3 compliant, -25 to 55°C operating temperature
IEC 61850-3, IEEE 1613, and IEC 60255 compliant for power substation automation systems
EN 50121-4 compliant for railway wayside applications
6th Gen Intel® Core™ i7/i5 CPU (Skylake)
2 built-in DDR4 memory sockets
1 mSATA for OS and 1 SATA III for storage expansion
14 Gigabit Ethernet ports for network redundancy
3 PCIe expansion slots for expansion modules
4 USB ports for high-speed peripherals
2 isolated RS-232/422/485 ports
Embedded Debian 8 Linux (W10 by CTOS)
Highly reliable design, supporting dual power and PRP/HSR technology (with PRP/HSR expansion module)

Computer

  • CPU: Intel® Core™ i7-6600U Processor (4M Cache, up to 3.40 GHz)
  • Graphics Controller: Intel© HD Graphics 520 (integrated)
  • System Memory Slot: SODIMM DDR4 slot x 2
  • Supported OS: Linux Debian 8 (Linux kernel v4.1) Windows 10 Embedded IOT Ent 2016 LTSB High End EPKEA Windows 10 Embedded IOT Ent 2016 LTSB Value EPKEA Note: W10 available by CTOS
  • Storage Slot: 2.5-inch HDD/SSD slots x 1 mSATA slots x 1, internal mini-PCIe socket

Computer Interface

  • Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 14
  • Serial Ports: RS-232/422/485 ports x 2, software-selectable (terminal block)
  • USB 2.0: USB 2.0 hosts x 2, type-A connectors (front)
  • USB 3.0: USB 3.0 hosts x 2, type-A connectors (rear)
  • Expansion Slots: Proprietary PCIe slot x 3
  • Video Input: DVI-D x 1, 29-pin DVI-D connectors (female) VGA x 1, 15-pin D-sub connector (female)

LED Indicators

  • System: Power x 1 Storage x 1 Programmable x 4
  • LAN: 1 per port (10/100/1000 Mbps)
  • Serial: 2 per port (Tx, Rx)

Serial Interface

  • Baudrate: 50 bps to 115.2 kbps
  • Connector: Terminal block
  • ESD: 8 kV (level 4)
  • Isolation: 2 kV
  • Serial Standards: RS-232/422/485
  • Surge: 2 kV: line-to-line 4 kV: line-to-ground

Serial Signals

  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
  • RS-232: TxD, RxD, RTS, CTS, GND

Power Parameters

  • Input Current: 0.82 A @ 100 VAC 0.77 A @ 110 VDC
  • Input Voltage: 100 to 240 VAC, 110 to 240 VDC
  • Power Button: Reset button (front panel) ON/OFF (rear panel)

Physical Characteristics

  • Housing: Metal
  • Dimensions (without ears): 440 x 301 x 90 mm (17.32 x 12.20 x 3.54 in)
  • Weight: 6,500 g (14.33 lb)
  • Installation: 19-inch rack mounting

Environmental Limits

  • Operating Temperature: -25 to 55°C (-13 to 131°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032/24
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-11 DIPs IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8: 20 A/m
  • Power Substation: IEC 61850-3, IEEE 1613
  • Protection Relay: IEC 60255
  • Railway: EN 50121-4
  • Safety: EN 60950-1, IEC 60950-1, UL 60950-1
  • Shock: IEC 60870-2-2, IEC 61850-3 Edition 1.0
  • Vibration: IEC 61850-3, IEC 60870-2-2

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 138,319 hrs

Warranty

  • Warranty Period: 3 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
DA-720-C5-DPP Rackmount computer with Core i5-6300U, 2.4 GHz, dual-core CPU, without mSATA/RAM/OS, 14 Gigabit Ethernet ports, 2 isolated RS-232/422/485 ports, 2 PCIe expansion slots, VGA x 1, DVI-D x 1, USB x 4, IEC 61850-3 compliant, -25 to 55°C operating temperature
DA-720-C5-DPP-LX
DA-720-C7-DPP Rackmount computer with Core i7-6600U, 2.6 GHz, dual-core CPU, without mSATA/RAM/OS, 14 Gigabit Ethernet ports, 2 isolated RS-232/422/485 ports, 2 PCIe expansion slots, VGA x 1, DVI-D x 1, USB x 4, IEC 61850-3 compliant, -25 to 55°C operating temperature
DA-720-C7-DPP-LX
