MPC-2190 SERIES

19-inch panel computer, Intel® Celeron® 1047UE 1.4 GHz, 300-nit LCD w/o touch, -15 to 55°C operating temperature, dual AC/DC power inputs, 4 GB RAM, IP54 in front
Third-generation Intel® processor (Intel® Core™ i7 3517UE 1.7 GHz or Celeron® 1047UE, 1.40 GHz)

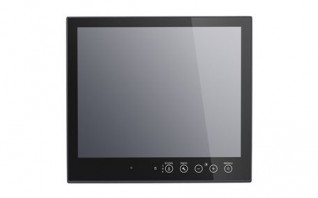

19-inch panel computer
Color calibrated for ECDIS compliance (available by CTOS)
SavvyTouch display controls
Fanless system design
Built-in NMEA 0183 and 3-in-1 software selectable RS-232/422/485 interfaces
Multiple power supplies (AC & DC)

Computer

  • CPU: Intel® Celeron® Processor 1047UE (2M Cache, 1.40 GHz)
  • System Chipset: Mobile Intel® HM65 Express Chipset
  • Graphics Controller: Intel® HD Graphics 520
  • System Memory Pre-installed: 4 GB DDR3/DDR3L
  • System Memory Slot: SODIMM DDR3/DDR3L slot x 1
  • Supported OS: Windows 7 Pro for Embedded Systems Windows Embedded Standard 7 (WS7P) 64-bit Windows 10 Pro 64-bit Windows 10 Embedded IoT Ent 2016 LTSB High End EPKEA Windows 10 Embedded IoT Ent 2016 LTSB Value EPKEA
  • Storage Slot: 2.5-inch HDD/SSD slots x 2

Computer Interface

  • Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
  • Serial Ports: RS-232/422/485 ports x 2, software selectable (DB9 male)
  • USB 2.0: USB 2.0 hosts x 4, type-A connectors
  • Audio Input/Output: Line in x 1, Line out x 1, 3.5 mm phone jack
  • PS/2: Keyboard PS/2 x 1, Mouse PS/2 x 1
  • Video Output: DVI-D x 1, 29-pin DVI-D connectors (female) VGA x 1, 15-pin D-sub connector (female)
  • NMEA Port: NMEA 0183 ports x 4 (terminal block)

LED Indicators

  • System: Power x 1
  • LAN: 2 per port (10/100/1000 Mbps)

Display

  • Active Display Area: 376.32 (H) x 301.06 (V) mm
  • Aspect Ratio: 5:4
  • Contrast Ratio: 2000:1
  • Light Intensity (Brightness): 300 cd/m2
  • Max. No. of Colors: 16.7M (8-bit/color)
  • Panel Size: 19-inch viewable image
  • Panel Type: MVA
  • Pixel Pitch (RGB): 0.294 (H) x 0.294 (V) mm
  • Pixels: 1280 x 1024
  • Response Time: 20 ms (gray to gray)
  • Viewing Angles: 178°/178°

Touch Function

  • Touch Type: None

Serial Interface

  • Baudrate: 50 bps to 115.2 kbps
  • Data Bits: 5, 6, 7, 8
  • Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
  • Parity: None, Even, Odd, Space, Mark
  • Stop Bits: 1, 1.5, 2
  • NMEA Interface: Serial Standards: NMEA 0183: RS-422 NMEA 2000: CAN bus (available on request) Baudrate: 4800 bps Data Bits: 8 Handshake: None Optical Isolation Protection: 3 kV Parity: None Serial Standards: NMEA 0183v2 (NMEA 2000 available on request) Stop Bits: 1, 1.5, 2 Voltage Differential: -6 V to +6 V (maximal differential level)

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Power Parameters

  • Input Voltage: 100 to 240 VAC, 18 to 34 VDC

Physical Characteristics

  • Housing: Metal
  • IP Rating: IP54, front IP20, rear
  • Dimensions: 429 x 387 x 74.5 mm (16.89 x 15.24 x 2.93 in)
  • Weight: 8,658 g (19.09 lb)

Environmental Limits

  • Operating Temperature: -15 to 55°C (5 to 131°F)
  • Storage Temperature (package included): -20 to 60°C (-4 to 140°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032/24
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V
  • Environmental Testing: IEC 60068-2-1, DNVGL-CG-0339 IEC 60068-2-2, DNVGL-CG-0339 IEC 60068-2-2, IEC 60945 IEC 60068-2-30, IEC 60945
  • Maritime: ABS, CCS, DNV-GL
  • Safety: EN 60950-1, IEC 60950-1, UL 60950-1
  • Vibration: IEC 60068-2-6, IEC 60945, IEC 60068-2-64, DNVGL-CG-0339

Declaration

  • Green Product: RoHS, CRoHS, WEEE

Warranty

  • Warranty Period: LCD: 1 year System: 3 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
MPC-2190Z-W7E 19-inch panel computer, Intel® Celeron® 1047UE 1.4 GHz, 300-nit LCD w/ multi-touch, -15 to 55°C operating temperature, dual AC/DC power inputs, IP54 in front, 4 GB RAM, 64 GB SSD, W7E
MPC-2190Z 19-inch panel computer, Intel® Celeron® 1047UE 1.4 GHz, 300-nit LCD w/ multi-touch, -15 to 55°C operating temperature, dual AC/DC power inputs, 4 GB RAM, IP54 in front
MPC-2190X 19-inch panel computer, Intel® Celeron® 1047UE 1.4 GHz, 300-nit LCD w/o touch, -15 to 55°C operating temperature, dual AC/DC power inputs, 4 GB RAM, IP54 in front
MPC-2197Z 19-inch panel computer, Intel® i7-3517UE 1.7 GHz, 300-nit LCD w/ multi-touch, -15 to 55°C operating temperature, dual AC/DC power inputs, 4 GB RAM, IP54 in front
MPC-2197X 19-inch panel computer, Intel® i7-3517UE 1.7 GHz, 300-nit LCD w/o touch, -15 to 55°C operating temperature, dual AC/DC power inputs, 4 GB RAM, IP54 in front
