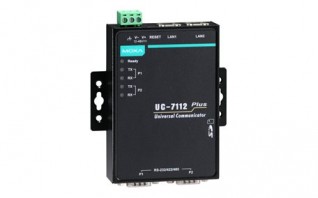

UC-7100 SERIES

Arm-based palm-sized industrial computer with 1 serial port and 1 LAN port, μClinux OS, -10 to 60°C operating temperature
MOXA ART Arm9 32-bit 192 MHz processor
16 or 32 MB RAM
8 or 16 MB Flash ROM
Dual or single 10/100 Mbps Ethernet ports
1 or 2 software-selectable RS-232/422/485 ports
50 bps to 921.6 kbps baudrate (nonstandard baudrates supported)
SD slot for storage expansion
Built-in real-time clock (RTC) and buzzer
Preinstalled Linux kernel 2.6 platform
-40 to 75°C wide-temperature models available

Computer

  • CPU: MOXA ART Arm9, 192 MHz
  • Supported OS: µCLinux
  • Storage Slot: SD slots x 1

Computer Interface

  • Ethernet Ports: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 1
  • Serial Ports: RS-232/422/485 ports x 1, software selectable (DB9 male)
  • Console Port: RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)

Memory

  • Flash: 8 MB
  • SDRAM: 16 MB

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 1 or 2
  • Magnetic Isolation Protection: 1.5 kV (built-in)

LED Indicators

  • System: System Ready x 1 SD slots x 1
  • LAN: 2 per port (10/100/1000 Mbps)
  • Serial: 2 per port (Tx, Rx)

Serial Interface

  • Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
  • Connector: DB9 male
  • Data Bits: 5, 6, 7, 8
  • Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
  • ESD Protection: 4 kV, for all signals
  • No. of Ports: 1
  • Parity: None, Even, Odd, Space, Mark
  • RS-485 Data Direction Control: ADDC® (automatic data direction control)
  • Serial Standards: RS-232/422/485
  • Stop Bits: 1, 1.5, 2

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Power Parameters

  • Connection: Removable terminal block
  • Input Current: 170 mA @ 24 VDC 340 mA @ 12 VDC
  • Input Voltage: 12 to 48 VDC
  • No. of Power Inputs: 1
  • Power Connector: 3-pin terminal block
  • Power Consumption: 4.5 W (max.)

Physical Characteristics

  • Housing: Metal
  • Dimensions (with ears): 90 x 111 x 26 mm (3.54 x 4.31 x 1.02 in)
  • Dimensions (without ears): 67 x 111 x 26 mm (2.64 x 4.31 x 1.02 in)
  • Weight: 130 g (0.29 lb)
  • Installation: DIN-rail mounting (with optional kit), Wall mounting, Wall mounting (standard)

Environmental Limits

  • Operating Temperature: -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included): -20 to 80°C (-4 to 176°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032/24, EN 61000-6-2/-6-4, EN 61000-3-2 Class A, EN 61000-3-3
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-11 DIPs IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
  • Environmental Testing: IEC 60068-2-1, DNV 2.0 IEC 60068-2-2, DNV 2.0 IEC 60068-2-30, DNV 2.0
  • Safety: EN 60950-1, IEC 60950-1, UL 60950-1
  • Vibration: IEC 60068-2-6

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 514,973 hrs
  • Standards: Telcordia (Bellcore), GB

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
UC-7101-LX Arm-based palm-sized industrial computer with 1 serial port and 1 LAN port, μClinux OS, -10 to 60°C operating temperature
UC-7101-T-LX Arm-based palm-sized industrial computer with 1 serial port and 1 LAN port, μClinux OS, -40 to 75°C operating temperature
UC-7110-LX Arm-based palm-sized industrial computer with 2 serial ports and 2 LAN ports, μClinux OS, -10 to 60°C operating temperature
UC-7110-T-LX Arm-based palm-sized industrial computer with 2 serial ports and 2 LAN ports, μClinux OS, -40 to 75°C operating temperature
UC-7112-LX Arm-based palm-sized industrial computer with 2 serial ports and 2 LAN ports, SD, μClinux OS, -10 to 60°C operating temperature
UC-7112-LX Plus Arm-based palm-sized industrial computer with 2 serial ports and 2 LAN ports, SD, Linux 2.6 OS, -10 to 60°C operating temperature
