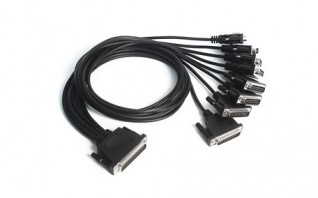

Extend the transmission distance of serial signals

Connector

• Board-side Connector: CBL-F40M25x4-50: 1 X DB40 (female)CBL-F9DPF1x4-BK-100: 1 x DB9 (female)CBL-F9M9-150: 1 x DB9 (female)CBL-F9M9-20: 1 x DB9 (female)CBL-M25M9x2-50: 1 x DB25 (male) CBL-M37M25x4-30: 1 x DB37 (male) CBL-M44M25x4-50: 1 x DB44 (male) CBL-M44M9x4-50: 1 x DB44 (male) CBL-M44M9x4-50 (POS): 1 x DB44 (male) CBL-M62M25x8-100: 1 x DB62 (male) CBL-M62M9x8-100: 1 x DB62 (male) CBL-M68M25x8-100: 1 x VHDCI 68 CBL-M68M9x8-100: 1 x VHDCI 68 CBL-M78M25x8-100: 1 x DB78 (male) CBL-M78M9x8-100: 1 x DB78 (male) CBL-RJ458P-100: 1 x 8-pin RJ45 CBL-RJ458P-Cisco-BK-180: 1 x 8-pin RJ45 CBL-RJ45F25-150: 1 x 8-pin RJ45 CBL-RJ45F9-150: 1 x 8-pin RJ45 CBL-RJ45M25-150: 1 x 8-pin RJ45 CBL-RJ45M9-150: 1 x 8-pin RJ45 CBL-RJ45SF25-150: 1 x 8-pin RJ45 CBL-RJ45SF9-150: 1 x 8-pin RJ45 CBL-RJ45SM25-150: 1 x 8-pin RJ45 CBL-RJ45SM9-150: 1 x 8-pin RJ45 CN20030: 1 x 10-pin RJ45 CN20040: 1 x 10-pin RJ45 CN20060: 1 x 10-pin RJ45 CN20070: 1 x 10-pin RJ45 NP21101: 1 x DB25 (male) NP21102: 1 x DB25 (male) NP21103: 1 x DB25 (male)
• Device-side Connector: CBL-F40M25x4-50: 4 x DB 25 (male)CBL-F9DPF1x4-BK-100: 1 x DP (female)CBL-F9M9-150: 1 x DB9 (male) CBL-F9M9-20: 1 x DB9 (male) CBL-M25M9x2-50: 2 x DB9 (male) CBL-M37M25x4-30: 4 x DB25 (male)CBL-M44M25x4-50: 4 x DB25 (male) CBL-M44M9x4-50: 4 x DB9 (male) CBL-M44M9x4-50 (POS): 4 x DB9 (male) CBL-M62M25x8-100: 8 x DB25 (male) CBL-M62M9x8-100: 8 x DB9 (male) CBL-M68M25x8-100: 8 x DB25 (male) CBL-M68M9x8-100: 8 x DB9 (male) CBL-M78M25x8-100: 8 x DB25 (male) CBL-M78M9x8-100: 8 x DB9 (male) CBL-RJ458P-100: 1 x 8-pin RJ45 CBL-RJ458P-Cisco-BK-180: 1 x 8-pin RJ45 CBL-RJ45F25-150: 1 x DB25 (female) CBL-RJ45F9-150: 1 x DB9 (female) CBL-RJ45M25-150: 1 x DB25 (male) CBL-RJ45M9-150: 1 x DB9 (male) CBL-RJ45SF25-150: 1 x DB25 (female) CBL-RJ45SF9-150: 1 x DB9 (female) CBL-RJ45SM25-150: 1 x DB25 (female) CBL-RJ45SM9-150: 1 x DB9 (male) CN20030: 1 x DB25 (female) CN20040: 1 x DB25 (male) CN20060: 1 x DB9 (male) CN20070: 1 x DB9 (female) NP21101: 1 x DB9 (female) NP21102: 1 x DB9 (male) NP21103: 1 x Terminal block

Physical Characteristics

• Cable Length: CBL-F40M25x4-50: 50 cm (19.69 in)CBL-F9DPF1x4-BK-100: 100 cm (3.3 ft)CBL-F9M9-150: 150 cm (4.9 ft) CBL-F9M9-20: 20 cm (7.87 in) CBL-M25M9x2-50: 50 cm (19.69 in) CBL-M37M25x4-30: 30 cm (11.81 in)CBL-M44M25x4-50: 50 cm (19.69 in) CBL-M44M9x4-50: 50 cm (19.69 in) CBL-M44M9x4-50 (POS): 50 cm (19.69 in) CBL-M62M25x8-100: 100 cm (3.3 ft) CBL-M62M9x8-100: 100 cm (3.3 ft) CBL-M68M25x8-100: 100 cm (3.3 ft) CBL-M68M9x8-100: 100 cm (3.3 ft) CBL-M78M25x8-100: 100 cm (3.3 ft) CBL-M78M9x8-100: 100 cm (3.3 ft) CBL-RJ458P-100: 100 cm (3.3 ft) CBL-RJ458P-Cisco-BK-180: 180 cm (5.91 ft) CBL-RJ45F25-150: 150 cm (4.9 ft) CBL-RJ45F9-150: 150 cm (4.9 ft) CBL-RJ45M25-150: 150 cm (4.9 ft) CBL-RJ45M9-150: 150 cm (4.9 ft) CBL-RJ45SF25-150: 150 cm (4.9 ft) CBL-RJ45SF9-150: 150 cm (4.9 ft) CBL-RJ45SM25-150: 150 cm (4.9 ft) CBL-RJ45SM9-150: 150 cm (4.9 ft) CN20030: 150 cm (4.9 ft)CN20040: 150 cm (4.9 ft)CN20060: 150 cm (4.9 ft)CN20070: 150 cm (4.9 ft)NP21101: 30 cm (11.81 in) NP21102: 30 cm (11.81 in) NP21103: N/A

Available Models

Model No.	Description	Quantity
CBL-F40M25x4-50	DB40 female to 4 x DB25 male serial cable, 50 cm
CBL-F9DPF1x4-BK-100	Console cable with 4-pin connector, 1 m
CBL-F9M9-150	DB9 female to DB9 male serial cable, 1.5 m
CBL-F9M9-20	DB9 female to DB9 male serial cable, 20 cm
CBL-M25M9x2-50	DB25 male to 2 x DB9 male serial cable, 50 cm
CBL-M37M25x4-30	DB37 male to 4 x DB25 male serial cable
CBL-M44M25x4-50	DB44 male to 4 DB25 male serial cable, 50 cm
CBL-M44M9x4-50	DB44 male to DB9 male serial cable, 50 cm
CBL-M44M9x4-50 (POS)	DB44 male to 4 x DB9 male serial cable, 50 cm
CBL-M62M25x8-100	DB62 male to 8 x DB25 male serial cable, 1 m
CBL-M62M9x8-100	DB62 male to 8 x DB9 male serial cable, 1 m
CBL-M68M25x8-100	SCSI VHDCI 68 to 8 x DB25 male serial cable, 1 m
CBL-M68M9x8-100	SCSI VHDCI 68 to 8 x DB9 male serial cable, 1 m
CBL-M78M25x8-100	DB78 male to 8 x DB25 male serial cable, 1 m
CBL-M78M9x8-100	DB78 male to 8 x DB9 male serial cable, 1 m
CBL-RJ458P-100	8-pin RJ45 CAT5 Ethernet cable, 1 m
CBL-RJ458P-Cisco-BK-180	8-pin RJ45 to 8-pin RJ45 serial cable, 1.8 m, for Cisco console port
CBL-RJ45F25-150	8-pin RJ45 to DB25 female serial cable, 1.5 m
CBL-RJ45F9-150	8-pin RJ45 to DB9 female serial cable, 1.5m
CBL-RJ45M25-150	8-pin RJ45 to DB25 male serial cable, 1.5m
CBL-RJ45M9-150	8-pin RJ45 to DB9 male serial cable, 1.5m
CBL-RJ45SF25-150	8-pin RJ45 to DB25 female serial cable with shielding, 1.5m
CBL-RJ45SF9-150	8-pin RJ45 to DB9 female serial cable with shielding, 1.5m
CBL-RJ45SM25-150	8-pin RJ45 to DB25 male serial cable with shielding, 1.5m
CBL-USBAP-50	USB A male/2.1 mm DC Jack cable, 50 cm
CBL-RJ45SM9-150	8-pin RJ45 to DB9 male serial cable with shielding, 1.5m
CN20030	10-pin RJ45 to DB25 female serial cable
CN20040	10-pin RJ45 to DB25 male serial cable
CN20060	10-pin RJ45 to DB9 male serial cable
CN20070	10-pin RJ50 to DB9 female serial cable
NP21101	DB25 male to DB9 female cable for RS-232 transmission, 30 cm
NP21102	DB25 male to DB9 male cable for RS-232 transmission, 30 cm
NP21103	DB25 male to terminal block for RS-422/485 transmission
