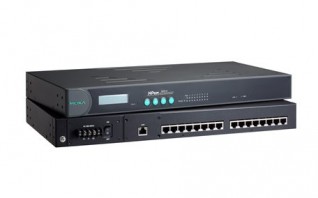

NPORT 5600 SERIES

8-port RS-232/422/485 rackmount device server with RJ45 connectors and 100-240 VAC power input
Standard 19-inch rackmount size
Easy IP address configuration with LCD panel (excluding wide-temperature models)
Configure by Telnet, web browser, or Windows utility
Socket modes: TCP server, TCP client, UDP
SNMP MIB-II for network management
Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC
Popular low-voltage ranges: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 1
  • Magnetic Isolation Protection: 1.5 kV (built-in)
  • Optical Fiber: Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
  • Optical Fiber: 100BaseFX
  • Optical Fiber: Multi-Mode
  • Optical Fiber: Single-Mode
  • Optical Fiber: Fiber Cable Type
  • Optical Fiber: OM1
  • Optical Fiber: 50/125 µm
  • Optical Fiber: G.652
  • Optical Fiber: 800 MHz x km
  • Optical Fiber: Typical Distance
  • Optical Fiber: 4 km
  • Optical Fiber: 5 km
  • Optical Fiber: 40 km
  • Optical Fiber: Wavelength
  • Optical Fiber: Typical (nm)
  • Optical Fiber: 1300
  • Optical Fiber: 1310
  • Optical Fiber: TX Range (nm)
  • Optical Fiber: 1260 to 1360
  • Optical Fiber: 1280 to 1340
  • Optical Fiber: RX Range (nm)
  • Optical Fiber: 1100 to 1600
  • Optical Fiber: 1100 to 1600
  • Optical Fiber: Optical Power
  • Optical Fiber: TX Range (dBm)
  • Optical Fiber: -10 to -20
  • Optical Fiber: 0 to -5
  • Optical Fiber: RX Range (dBm)
  • Optical Fiber: -3 to -32
  • Optical Fiber: -3 to -34
  • Optical Fiber: Link Budget (dB)
  • Optical Fiber: 12
  • Optical Fiber: 29
  • Optical Fiber: Dispersion Penalty (dB)
  • Optical Fiber: 3
  • Optical Fiber: 1
  • Optical Fiber: Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Ethernet Software Features

  • Configuration Options: Web Console (HTTP), Windows Utility, Telnet Console
  • Management: ARP, BOOTP, DHCP Client, DNS, HTTP, IPv4, SMTP, SNMPv1, TCP/IP, Telnet, UDP, ICMP, Rtelnet, RFC2217, PPP, SLIP
  • Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Fixed TTY Drivers: SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
  • Linux Real TTY Drivers: Kernel version: 2.4.x, 2.6.x, 3.x, 4.x
  • Android API: Android 3.1.x and later
  • Time Management: SNTP

Serial Interface

  • Connector: 8-pin RJ45
  • No. of Ports: 8
  • Serial Standards: RS-232, RS-422, RS-485
  • Operation Modes: Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP
  • Baudrate: Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2
  • Parity: None, Even, Odd, Space, Mark
  • Flow Control: None, RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
  • Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485: 120 ohms
  • RS-485 Data Direction Control: ADDC® (automatic data direction control)

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND

Power Parameters

  • Input Current: 158 mA @ 100 VAC
  • Input Voltage: 100 to 240 VAC, 47 to 63 Hz

Reliability

  • Automatic Reboot Trigger: Built-in WDT

Physical Characteristics

  • Housing: Metal
  • Installation: 19-inch rack mounting
  • Dimensions (with ears): 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in)
  • Dimensions (without ears): 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in)
  • Weight: 2,310 g (5.09 lb)
  • Interactive Interface: LCD panel display Push buttons for configuration

Environmental Limits

  • Operating Temperature: 0 to 55°C (32 to 131°F)
  • Storage Temperature (package included): -20 to 70°C (-4 to 158°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMI: CISPR 32, FCC Part 15B Class A
  • EMC: EN 55032/24
  • EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs
  • Medical: EN 60601-1-2 Class B, EN 55011
  • Safety: UL 60950-1

MTBF

  • Time: 692,010 hrs
  • Standards: MIL-HDBK-217F

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
NPort 5610-8 8-port RS-232 rackmount device server with RJ45 connectors and 100-240 VAC power input
NPort 5610-8-48V 8-port RS-232 rackmount device server with RJ45 connectors and 48 VDC power input
NPort 5630-8 8-port RS-422/485 rackmount device server with RJ45 connectors and 100-240 VAC power input
NPort 5610-16 16-port RS-232 rackmount device server with RJ45 connectors and 100-240 VAC power input
NPort 5610-16-48V 16-port RS-232 rackmount device server with RJ45 connectors and 48 VDC power input
NPort 5630-16 16-port RS-422/485 rackmount device server with RJ45 connectors and 100-240 VAC power input
NPort 5650-8 8-port RS-232/422/485 rackmount device server with RJ45 connectors and 100-240 VAC power input
NPort 5650-8-M-SC 8-port RS-232/422/485 rackmount device server with multi-mode fiber (SC connector)
NPort 5650-8-S-SC 8-port RS-232/422/485 rackmount device server with single-mode fiber (SC connector)
NPort 5650-8-T 8-port RS-232/422/485 rackmount device server with RJ45 connectors and 100-240 VAC power input, -40 to 75°C operating temperature
NPort 5650-8-HV-T 8-port RS-232/422/485 to rackmount device server with RJ45 connectors and 88 to 300 VDC power input, -40 to 85°C operating temperature
NPort 5650-16 16-port RS-232/422/485 rackmount device server with RJ45 connectors and 100-240 VAC power input
NPort 5650-16-M-SC 16-port RS-232/422/485 rackmount device server with multi-mode fiber (SC connector)
NPort 5650-16-S-SC 16-port RS-232/422/485 rackmount device server with single-mode fiber (SC connector)
NPort 5650-16-T 16-port RS-232/422/485 rackmount device server with RJ45 connectors and 100-240 VAC power input, -40 to 75°C operating temperature
NPort 5650-16-HV-T 16-port RS-232/422/485 to rackmount device server with RJ45 connectors and 88 to 300 VDC power input, -40 to 85°C operating temperature
