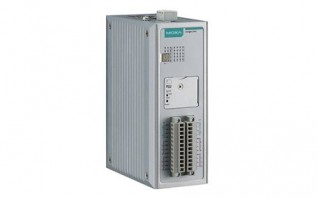

IOLOGIK 2542-GPRS

HSPA remote I/O with Click&Go Plus, 4 AIs, 12 DI/Os, -30 to 70°C operating temperature



Front-end intelligence with Click&Go Plus control logic, up to 48 rules
Active communication with MX-AOPC UA Server
Automatically complement disconnection period data with MX-AOPC UA Logger software
4-port unmanaged switch built in for linking to Ethernet devices
I/O expansion port for daisy chaining up to 8 ioLogik E1200 units
3-in-1 RS-232/422/485 serial port for connecting to serial devices in the field
Supports SNMPv1/v2c/v3
Simplify I/O management with MXIO library for Windows or Linux platforms
Wide operating temperature range of -30 to 70°C (-22 to 158°F)

Inputs and Outputs

  • Configurable DIOs (by software): 12 channels
  • Analog Inputs: 4 channels
  • Isolation: 3k VDC or 2k Vrms

Digital Input

  • Sensor Type: Wet Contact (NPN or PNP) and Dry Contact
  • I/O Mode: DI or Event Counter
  • Dry Contact: • On: short to GND • Off: open
  • Wet Contact (DI to COM): • On: 10 to 30 VDC • Off: 0 to 3 VDC
  • Common Type: 6 points per COM
  • Counter Frequency: 2.5 kHz
  • Digital Filtering Time Interval: Software configurable

Digital Output

  • Type: Sink
  • I/O Mode: DO or Pulse Output
  • Pulse Output Frequency: 5 kHz
  • Over-Voltage Protection: 45 VDC
  • Over-Current Protection: 1.5 A per channel @ 25°C
  • Over-Temperature Shutdown: 175°C (min.)
  • Current Rating: 500 mA per channel @ 25°C
  • DIO Output Leakage Current: < 1 mA @ 30 VDC

Analog Input

  • Type: Differential input
  • Resolution: 16 bits
  • I/O Mode: Voltage / Current (software selectable)
  • Input Range: ±10 V, 0 to 10 V, 0 to 20 mA, 4 to 20 mA, 4 to 20 mA (burnout detection)
  • Accuracy: • ±0.1% FSR @ 25°C • ±0.3% FSR @ -10 and 60°C • ±0.5% FSR @ -30 and 70°C
  • Sampling Rate: • All channels: 400 samples/sec • Per channel: 100 samples/sec
  • Input Impedance: 1M ohms (min.)
  • Built-in Resistor for Current Input: 120 ohms

Power Requirements

  • Input Voltage: 9 to 48 VDC
  • Input Current: 494 mA @ 24 VDC

MTBF (mean time between failures)

  • Time: 403,087 hrs
  • Standard: Telcordia SR332

Cellular

  • Standards: GSM/GPRS/EDGE
  • GPRS Model Band Options: GSM/GPRS/EDGE: quad-band 850/900/1800/1900 MHz
  • SIM Control Voltage: 3/1.8 V
  • SIM Format: Full size
  • HSPA Model Band Options: • UMTS/HSPA+: five-band 800/850/900/1900/2100 MHz • GSM/GPRS/EDGE: quad-band 850/900/1800/1900 MHz

LAN

  • Ethernet: • 4 switched 10/100 Mbps RJ45 ports • 1 optimized port for faster downstream communications with daisy-chained ioLogik E1200 units
  • Note: The optimized daisy-chain port is not supported by the ioLogik E1261W-T, E1261H-T, or E1263H-T.
  • Protection: 1.5 kV magnetic isolation
  • Protocols: Modbus/TCP (slave), TCP/IP, UDP, DHCP, BOOTP, SNMP, HTTP, CGI, SNTP, SMTP

Serial

  • Interface: 2 RS-232/422/485 (software selectable) RJ45 ports
  • Parity: None, Odd, Even
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 2
  • Flow Control: None, RTS/CTS, XON/XOFF
  • Baudrate: 300 to 115200 bps
  • Protocols: Modbus/RTU (master/gateway), serial tunnel mode (client/server)

Physical Characteristics

  • Wiring: I/O cable, 14 AWG (max.)
  • Dimensions: 61 x 157 x 115 mm (2.4 x 6.18 x 4.53 in)
  • Weight: Under 1265 g (2.79 lb)
  • Mounting: DIN rail (standard), wall (optional)

Storage

  • Expansion Slot: Up to 32 GB microSD™ memory card (SDHC compatible)
  • Note: For units operating in extreme temperatures, industrial-grade, wide-temperature SD cards are required.

Environmental Limits

  • Operating Temperature: Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -30 to 70°C (-22 to 158°F)
  • Storage Temperature: -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6
  • Altitude: Up to 2000 m

Standards and Certifications

  • Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.: Safety
  • UL 508: EMC
  • EN 61000-6-2/6-4: EMI
  • FCC Part 15B Class A: EMS
  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power 2 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8: Radio
  • R&TTE: EN 62311, EN 300 328, EN 301 489-1, EN 301 489-17, EN 301 893; NCC; VCCI: Hazardous Location
  • Class 1 Division 2; ATEX Zone 2: Green Product
  • RoHS, CRoHS, WEEE: Note: Please check Moxa’s website for the most up-to-date certification status.
  • Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.: Safety

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

available models

Model No. Description Quantity
ioLogik 2542-GPRS GPRS remote I/O with Click&Go Plus, 4 AIs, 12 DI/Os, -10 to 60°C operating temperature
ioLogik 2542-GPRS-T GPRS remote I/O with Click&Go Plus, 4 AIs, 12 DI/Os, -30 to 70°C operating temperature
ioLogik 2542-HSPA HSPA remote I/O with Click&Go Plus, 4 AIs, 12 DI/Os, -10 to 60°C operating temperature
ioLogik 2542-HSPA-T HSPA remote I/O with Click&Go Plus, 4 AIs, 12 DI/Os, -30 to 70°C operating temperature
