IOPAC 8020 SERIES EXPANSION MODULES

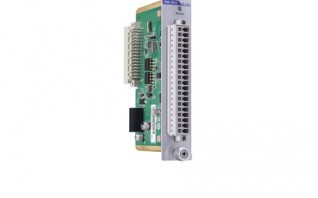

ioPAC 8020 I/O module with 10 DIs, 110 VDC isolated type, -40 to 75°C operating temperature

RM-1050-T: 10 channel-to-channel isolated DIs, 110 VDC, sink/source type
RM-1602-T: 16 digital inputs, 24 VDC, sink/source type
RM-2600-T: 16 digital outputs, 24 VDC, sink-type
RM-3802-T: 8 analog inputs, 4 to 20 mA
RM-3810-T: 8 analog inputs, 0 to 10 V
KM-2430-T: 4-port unmanaged Ethernet switch module

  • RM-1602-T Specifications: Digital Inputs
  • 16 channels, 24 VDC, sink/source type: On
  • 10 to 30 VDC: Off
  • 0 to 3 VDC: Input Impedance
  • 3 kilo-ohms (typical): Common Type
  • 8 points per 2 COMs: Response Time
  • 10 ms: Over Current Protection
  • 3k VDC or 2k Vrms: Operating Temperature
  • -40 to 75°C (-40 to 176°F): Input Current
  • 7 mA @ 24 VDC: Wiring
  • I/O cable, 14 AWG (max.): MTBF
  • 4,132,863 hrs (Standard: Telcordia SR332):
  • RM-1050-T Specifications: Digital Inputs
  • 10 channels, 110 VDC, channel-to-channel isolation: On
  • 50 to 175 VDC: Off
  • 0 to 15 VDC: Input Impedance
  • 120 kilo-ohms (typical): Response Time
  • 2.5k VDC: Operating Temperature
  • 3,993,435 hrs (Standard: Telcordia SR332):
  • RM-2600-T Specifications: Digital Outputs
  • 16 channels, 24 VDC, sink-type: Output Impedance
  • 120 milli-ohms (typical): Current Rating
  • 200 mA per channel: Off-state Resistance
  • 500 kilo-ohms (typical): Response Time
  • 2.6 A (4 channels @ 650 mA): Isolation
  • 10 mA @ 24 VDC: Wiring
  • 4,440,241 hrs (Standard: Telcordia SR332):
  • RM-3802-T Specifications: Analog Inputs
  • 8 channels, differential: Input Range
  • 4 to 20 mA: Input Impendence
  • 120 ohms: Resolution
  • 16 bits, 0.24 μA/bit: Accuracy
  • ±0.1%, FSR @ 25°C ±0.3%, FSR @ -40°C and 75°C: Sampling Rate
  • • All channels: 12 samples/sec • Per channel: 1.5 samples/sec: Isolation
  • 78 mA @ 24 VDC: Wiring
  • 1,222,361 hrs (Standard: Telcordia SR332):
  • RM-3810-T Specifications: Analog Inputs
  • 0 to 10 VDC: Input Impendence
  • 10 mega-ohms (min.): Resolution
  • 16 bits, 0.15 μA/bit: Data Format
  • 16-bit integer (2’s complement): Accuracy
  • ±0.1%, FSR @ 25°C ±0.3%, FSR @ -40°C, 75°C: Sampling Rate
  • 1,225,957 hrs (Standard: Telcordia SR332):
  • KM-2430-T Specifications: Standards
  • IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for Flow Control: Processing Type
  • Store and Forward: Interface
  • Front cabling, M12 connector, 10/100BaseT(X) auto negotiation speed: Operating Temperature
  • 20 mA @ 24 VDC: MTBF
  • 3,873,592 hrs (Standard: Telcordia SR332):

Power Requirements

  • Common Specifications: Input Voltage

Environmental Limits

  • 12 to 36 VDC: Storage Temperature
  • -40 to 85°C (-40 to 185°F): Ambient Relative Humidity
  • 5 to 95% (non-condensing): Shock
  • IEC 60068-2-27: Freefall
  • IEC 60068-2-32: Vibration

Standards and Certifications

  • IEC 60068-2-6: Safety
  • UL 508: EMC
  • EN 55032, EN 55024: EMI
  • FCC Part 15 Subpart B Class A, CISPR 32, CISPR 16-1-2, 16-2-1, 16-2-3, EN 61000-6-4: EMS
  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS:    80 MHz to 1000 MHz: 10 V/m    1400 MHz to 2100 MHz: 3 V/m    2100 MHz to 2700 MHz: 1 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV (L-PE), 1 kV (L-L); Signal: 1 kV (9-slot version) IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF: 30 A/m: Rail Traffic

Warranty

  • EN 50155*, EN 50121-3-2, EN 50121-4. Complies with a portion of EN 50155 specifications. Please contact Moxa or a Moxa distributor for details.*Complies with a portion of EN 50155 specifications.: Warranty Period
  • 5 years: Details
  • EN 50155*, EN 50121-3-2, EN 50121-4. Complies with a portion of EN 50155 specifications. Please contact Moxa or a Moxa distributor for details.*Complies with a portion of EN 50155 specifications.: Warranty Period

available models

Model No. Description Quantity
RM-1602-T ioPAC 8020 I/O module with 16 DIs, 24 VDC sink/source type, -40 to 75°C operating temperature
RM-1050-T ioPAC 8020 I/O module with 10 DIs, 110 VDC isolated type, -40 to 75°C operating temperature
RM-2600-T ioPAC 8020 I/O module with 16 DOs, 24 VDC sink type, -40 to 75°C operating temperature
RM-3802-T ioPAC 8020 I/O module with 8 AIs, 4 to 20 mA, -40 to 75°C operating temperature
RM-3810-T ioPAC 8020 I/O module with 8 AIs, 0 to 10 V, -40 to 75°C operating temperature
KM-2430-T ioPAC 8020 communication module with 4-port Ethernet switch, M12 connectors, -40 to 75°C operating temperature
