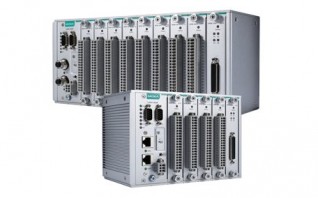

IOPAC 8500 IEC 61131-3 SERIES

Modular RTU controller with RJ45 connectors, 2 I/O slots, IEC 61131-3, -40 to 75°C operating temperature

Computer

  • Main CPU: 32-bit ARM9 192 MHz CPU
  • I/O CPU: 32-bit ARM Cortex M4 80 MHz CPU
  • OS: Linux
  • Clock: Real-time clock with battery backup
  • Memory: • SDRAM: 64 MB • Flash: 32 MB • SRAM: 256 KB (battery backup lasts for 1 week) • microSD™ Slot: Up to 32 GB (SD 2.0 compatible) Note: For units operating in extreme temperatures, industrial-grade, widetemperature microSD cards are required.

Ethernet Interface

  • LAN: 2 x 10/100 Mbps, 2 MACs (IPs), RJ45 or M12
  • Protection: 1.5 kV magnetic isolation

Serial Interface

  • Interface: • 2 RS-232/422/485 ports, software selectable (DB9 male) • 1 RS-232 debug port (4-pin connector)
  • Serial Line Protection: 8 kV ESD for all signals

Serial Communication Parameters

  • Parity: None, Even, Odd
  • Data Bits: 7, 8
  • Stop Bits: 1, 2
  • Flow Control: RTS/CTS, XON/XOFF
  • Baudrate: 300 bps to 921.6 kbps

Serial Signals

  • RS-232: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND, RI
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND

Software Characteristics

  • Automation Languages: C/C++ or IEC 61131-3
  • Protocols: Modbus TCP/RTU (master/slave), SNMP, TCP/IP, UDP, DHCP, BOOTP, SNTP, SMTP

Power Requirements

  • Input Voltage: 24 VDC (9 to 48 VDC)
  • Input Current: 152 mA @ 24 VDC

Physical Characteristics

  • Housing: Aluminum
  • Dimensions: • 2-slot version: 114.7 x 135 x 100 mm (4.52 x 5.31 x 3.94 in) • 5-slot version: 190.9 x 135 x 100 mm (7.52 x 5.31 x 3.94 in) • 9-slot version: 292.5 x 135 x 100 mm (11.52 x 5.31 x 3.94 in)
  • Weight: • 2-slot version: 1300 g (2.87 lb) • 5-slot version: 2000 g (4.41 lb) • 9-slot version: 2575 g (5.68 lb)
  • Mounting: DIN rail (standard), wall (optional)
  • Connector: Spring-type terminal block

Environmental Limits

  • Operating Temperature: -40 to 75°C (-40 to 176°F)
  • Storage Temperature: -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6
  • Altitude: Up to 2000 m Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

Standards and Certifications

  • Safety: UL 508
  • EMC: EN 55032, EN 55024
  • EMI: FCC Part 15 Subpart B Class A, CISPR 32
  • EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m 1400 MHz to 2100 MHz: 3 V/m 2100 MHz to 2700 MHz: 1 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV (L-PE), 1 kV (L-L);
  • Rail Traffic: EN 50155*, EN 50121-3-2, EN 50121-4 *Complies with a portion of EN 50155 specifications. Note: Please check Moxa’s website for the most up-to-date certification status.

MTBF (mean time between failures)

  • Time: 859,979 hrs
  • Standard: Telcordia SR332

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty
