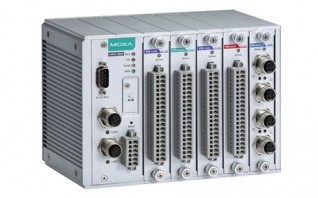

IOPAC 8020 C/C++ SERIES

Modular RTU controller with RJ45 connectors and 5 I/O slots, supports C/C++ programming, -40 to 75°C operating temperature

Computer

  • CPU: 32-bit ARM9 160 MHz CPU
  • OS: Linux
  • Clock: Real-time clock with battery backup
  • SDRAM: 64 MB
  • Flash: 32 MB
  • SD™ Slot: Up to 32 GB (SD 2.0 compatible) Note: For units operating in extreme temperatures, industrial-grade, wide-temperature SD cards are required.

Ethernet Interface

  • LAN: 2 x 10/100 Mbps, Ethernet bypass, RJ45 or M12
  • Protection: 1.5 kV magnetic isolation

Serial Interface

  • Serial Ports: RS-232/422/485 (DB9 male)
  • Serial Debug Port: RS-232 (4-pin connector)

Serial Ports

  • RS-232: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND
  • RS-422: TxD+, TxD-, RxD+, RxD-, GND
  • RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND
  • RS-485-2w: Data+, Data-, GND

Power Requirements

  • Input Voltage: 12 to 36 VDC
  • Input Current: 184 mA @ 24 VDC (without I/O modules) Note: Compliant with EN 50155 at 24 VDC

Physical Characteristics

  • Housing: Aluminum
  • Dimensions: 5-slot version: 190.9 x 135 x 100 mm (7.52 x 5.31 x 3.94 in) 9-slot version: 292.5 x 135 x 100 mm (11.52 x 5.31 x 3.94 in)
  • Weight: 5-slot version: 2,000 g (4.41 lb) 9-slot version: 2,575 g (5.68 lb)
  • Mounting: DIN rail (standard), wall (optional)
  • I/O Module Slots: 5 or 9 slots (the 9th slot is reserved)

Environmental Limits

  • Operating Temperature: -40 to 75°C (-40 to 167°F)
  • Storage Temperature: -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6
  • Altitude: Up to 2000 m Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

Standards and Certifications

  • Safety: UL 508
  • EMC: EN 55032/24
  • EMI: FCC Part 15 Subpart B Class A, CISPR 32
  • EMS: EMS:IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS:    80 MHz to 1000 MHz: 10 V/m    1400 MHz to 2100 MHz: 3 V/m    2100 MHz to 2700 MHz: 1 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV (L-PE), 1 kV (L-L); Signal: 1 kV (9-slot version) IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF: 30 A/m
  • Rail Traffic: EN 50155*, EN 50121-4 *Complies with a portion of EN 50155 specifications.
  • Green Product: RoHS, CRoHS, WEEE Note: Please check Moxa’s website for the most up-to-date certification status.

MTBF (mean time between failures)

  • Time: 690,214 hrs
  • Standard: Telcordia SR332

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

available models

Model No. Description Quantity
ioPAC 8020-5-RJ45-C-T Modular RTU controller with RJ45 connectors and 5 I/O slots, supports C/C++ programming, -40 to 75°C operating temperature
ioPAC 8020-5-M12-C-T Modular RTU controller with M12 connectors and 5 I/O slots, supports C/C++ programming, -40 to 75°C operating temperature
ioPAC 8020-9-RJ45-C-T Modular RTU controller with RJ45 connectors and 9 I/O slots, supports C/C++ programming, -40 to 75°C operating temperature
ioPAC 8020-9-M12-C-T Modular RTU controller with M12 connectors and 9 I/O slots, supports C/C++ programming, -40 to 75°C operating temperature
RM-1050-T ioPAC I/O module with 10 digital inputs, 110 VDC sink type, -40 to 75°C operating temperature
RM-1602-T ioPAC I/O module with 16 digital inputs, 24 VDC sink/source type, -40 to 75°C operating temperature
RM-2600-T ioPAC I/O module with 16 digital outputs, 24 VDC sink type, -40 to 75°C operating temperature
RM-3802-T ioPAC I/O module with 8 analog inputs, 4 to 20 mA, -40 to 75°C operating temperature
RM-3810-T ioPAC I/O module with 8 analog inputs, 0 to 10 V, -40 to 75°C operating temperature
KM-2430-T ioPAC communication module with 4-port Ethernet switch, M12 connectors, -40 to 75°C operating temperature

optional accessories

Model No. Description Quantity
WK-75 Wall Mount Kit: 2 pcs of plates, 8 screws
