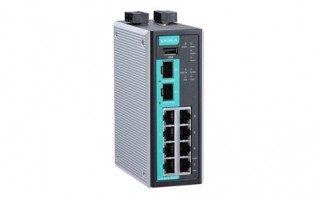

EDR-810 SERIES

8+2G SFP industrial multiport secure router with Firewall/NAT, -10 to 60°C operating temperature
edr-810-series
8+2G all-in-one firewall/NAT/VPN/router/switch
Secure remote access tunnel with VPN
Stateful firewall protects critical assets
Inspect industrial protocols with PacketGuard technology
Easy network setup with Network Address Translation (NAT)
RSTP/Turbo Ring redundant protocol enhances network redundancy
-40 to 75°C operating temperature range (-T model)
Security features based on IEC 62443/NERC CIP
Check firewall settings with intelligent SettingCheck feature

Input/Output Interface

  • Alarm Contact Channels: Resistive load: 1 A @ 24 VDC
  • Buttons: Reset button
  • Digital Input Channels: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 8
  • 100/1000BaseSFP Slots: 2
  • Standards: IEEE 802.1Q for VLAN Tagging IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) Static Port Trunk IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

Ethernet Software Features

  • Broadcast Forwarding: IP directed broadcast, broadcast forwarding
  • Management: Back Pressure Flow Control DDNS DHCP Server/Client Web Console (HTTP/HTTPS) LLDP QoS/CoS/ToS SNMPv1/v2c/v3 Telnet TFTP
  • Multicast Routing: DVMRP PIM-SM PIM-SSM
  • Redundancy Protocols: RSTP STP Turbo Ring v2
  • Routing: Throughput: 10,000 packets per second (max. 100 Mbps)
  • Routing Redundancy: VRRP
  • Security: HTTPS/SSL SSH L2TP (server) RADIUS
  • Time Management: NTP Server/Client SNTP
  • Unicast Routing: OSPF RIPV1/V2 Static Route
  • Filter: IGMP v1/v2/v3

Switch Properties

  • VLAN ID Range: VID 1 to 4094
  • IGMP Groups: 256
  • Max. No. of VLANs: 16

LED Interface

  • LED Indicators: STATE, PWR1, PWR2, FAULT, 10/100/1000M

DoS and DDoS Protection

  • Technology: ARP-Flood FIN Scan ICMP-Death NEWWithout-SYN Scan NMAP-ID Scan NMAP-Xmas Scan Null Scan SYN/FIN Scan SYN/RST Scan SYN-Flood Xmas Scan

Firewall

  • Deep Packet Inspection: Modbus TCP Modbus UDP
  • Filter: DDoS Ethernet protocols ICMP IP address MAC address Ports
  • Quick Automation Profiles: DNP EtherCAT EtherNet/IP FOUNDATION Fieldbus FTP HTTP IEC 60870-104 IPsec L2TP LonWorks Modbus TCP PPTP PROFINET RADIUS SSH Telnet
  • Stateful Inspection: Router firewall Transparent (bridge) firewall
  • Throughput: Max. 10,000 packets per second (max. 100 Mbps)

NAT

  • Features: 1-to-1 N-to-1 Port forwarding

Real-Time Firewall / VPN Event Log

  • Event Type: Firewall event
  • Media: Local storage SNMP Trap Syslog server

Serial Interface

  • Console Port: RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)

Power Parameters

  • Connection: Removable terminal block
  • Input Voltage: 12 to 48 VDC
  • Reverse Polarity Protection: Supported
  • Input Current: 0.706 A @ 12 VDC, 0.353 A @ 24 VDC, 0.187 A @ 48 VDC

Physical Characteristics

  • Housing: Metal
  • Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
  • Weight: 830 g (2.10 lb)
  • Installation: DIN-rail mounting Wall mounting (with optional kit)

Environmental Limits

  • Operating Temperature: -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • Safety: UL 508
  • EMC: EN 55032/24
  • Hazardous Locations: ATEX Class I Division 2
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
  • Railway: EN 50121-4
  • Traffic Control: NEMA TS2
  • Shock: IEC 60068-2-27
  • Freefall: IEC 60068-2-32
  • Vibration: IEC 60068-2-6
  • Maritime: DNV
  • Industrial Cybersecurity: IEC 61162-460

MTBF

  • Time: 981,954 hrs
  • Standards: Telcordia (Bellcore), GB

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
EDR-810-2GSFP 8+2G SFP industrial multiport secure router with Firewall/NAT, -10 to 60°C operating temperature
EDR-810-2GSFP-T 8+2G SFP industrial multiport secure router with Firewall/NAT, -40 to 75°C operating temperature
EDR-810-VPN-2GSFP 8+2G SFP industrial multiport secure router with Firewall/NAT/VPN, -10 to 60°C operating temperature
EDR-810-VPN-2GSFP-T 8+2G SFP industrial multiport secure router with Firewall/NAT/VPN, -40 to 75°C operating temperature
