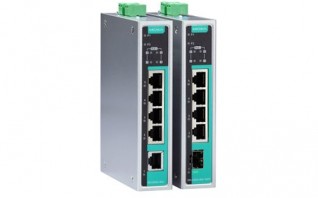

EDS-G205A-4POE SERIES

Unmanaged Ethernet switch with 1 1000Base-X port and 4 10/100/1000BaseT PoE/PoE+ ports, -40 to 75°C operating temperature

Full Gigabit Ethernet ports
IEEE 802.3af/at, PoE+ standards
Up to 36 watts output per PoE port
12/24/48 VDC flexible redundant power inputs
Supports 9.6 KB jumbo frames
Intelligent power consumption detection and classification
Smart PoE over current and short circuit protection
-40 to 75°C operating temperature range (T models)

Technology

  • Standards: IEEE 802.3af/at for Power-over-Ethernet IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control
  • Processing Type: Store and Forward

Switch Properties

  • MAC Table Size: 8 K
  • Packet Buffer Size: 1 Mbit
  • Jumbo Frame Size: 10 KB

Interface

  • RJ45 Ports: 10/100/1000BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
  • Fiber Ports: 100/1000BaseSFP slot
  • PoE Pinout: V+, V+, V-, V- for pins 1,2,3,6 (Endspan, MDI Alternative A)

Power Requirements

  • Input Voltage: 12/24/48 VDC, redundant dual inputs
  • Operating Voltage: 12 to 57 VDC
  • Input Current: 5.65 A @ 24 VDC
  • Overload Current Protection: Present
  • Connection: 2 removable 2-contact terminal blocks
  • Reverse Polarity Protection: Present
  • Power Consumption: Max. 11.73 W full loading without PDs’ consumption
  • Power Budget: Max. 62 W at 12 VDC, 120 W at 24 VDC, and 144 W at 48 VDC for total PDs’ consumption,Max. 36 W for each PoE port

Physical Characteristics

  • Housing: Metal
  • IP Rating: IP30 protection
  • Dimensions: 29 x 135 x 105 mm (1.14 x 5.31 x 4.13 in)
  • Weight: 300 g (0.66 lb)
  • Installation: DIN-rail mounting, wall mounting (with optional kit)

Environmental Limits

  • Operating Temperature: Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
  • Storage Temperature: -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • Note: Please check Moxa’s website for the most up-to-date certification status.
  • Safety: UL 508
  • EMC: EN 55032/24
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8
  • Rail Traffic: EN 50121-4
  • Shock: IEC 60068-2-27
  • Freefall: IEC 60068-2-32
  • Vibration: IEC 60068-2-6

MTBF (mean time between failures)

  • Time: 1,257,910 hrs
  • Standard: Telcordia (Bellcore), GB

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

available models

Model No. Description Quantity
EDS-G205A-4PoE Unmanaged Ethernet switch with 1 10/100/1000BaseT port and 4 PoE/PoE+ ports, 0 to 60°C operating temperature
EDS-G205A-4PoE-T Unmanaged Ethernet switch with 1 10/100/1000BaseT port and 4 PoE/PoE+ ports, -40 to 75°C operating temperature
EDS-G205A-4PoE-1GSFP Unmanaged Ethernet switch with 1 1000Base-X port and 4 10/100/1000BaseT PoE/PoE+ ports, 0 to 60°C operating temperature
EDS-G205A-4PoE-1GSFP-T Unmanaged Ethernet switch with 1 1000Base-X port and 4 10/100/1000BaseT PoE/PoE+ ports, -40 to 75°C operating temperature

optional accessories

Model No. Description Quantity
SPL-24 PoE splitters
INJ-24A Gigabit high power IEEE 802.3af/at PoE+ injectors
INJ-24 Gigabit IEEE 802.3af/at PoE+ injectors
