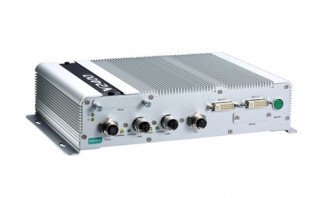

V2406A SERIES

x86 embedded computer with Intel Celeron 1047UE, 4 GB of DDR3 RAM installed, 2 DVIs, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 1 backup CFast socket, 1 OS CFast socket, 12 to 48 VDC power, -25 to 55°C operating temperature (EN 50155 Class T1)
Intel Celeron/Core i7 processor
Dual independent DVI-I displays
2 Gigabit Ethernet ports with M12 X-coded connectors
1 SATA connector and 2 CFast sockets for storage expansion
M12 A-coded power connector
Compliant with EN 50121-4
Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
Ready-to-run Debian 7, Windows Embedded Standard 7, and Windows 10 Embedded IoT Enterprise 2016 LTSB platforms
-40 to 70°C wide-temperature models available
Supports SNMP-based system configuration, control, and monitoring (Windows only)

Computer

  • CPU: Intel® Celeron® Processor 1047UE (2M Cache, 1.40 GHz)
  • System Memory Pre-installed: 4 GB DDR3
  • System Memory Slot: SODIMM DDR3/DDR3L slot x 1
  • Supported OS: Linux Debian 7 Windows Embedded Standard 7 (WS7E) 32-bit Windows Embedded Standard 7 (WS7E) 64-bit
  • Storage Slot: 2.5-inch HDD/SSD slots x 1 CFast slot x 2

Computer Interface

  • Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2
  • Serial Ports: RS-232/422/485 ports x 4, software selectable (DB9 male)
  • USB 2.0: USB 2.0 hosts x 1, M12 D-coded connector USB 2.0 hosts x 2, type-A connectors
  • Audio Input/Output: Line in x 1, Line out x 1, M12 D-coded
  • Digital Input: DIs x 6
  • Digital Output: DOs x 2
  • Video Output: DVI-I x 2, 29-pin DVI-I connectors (female)

Digital Inputs

  • Isolation: 3k VDC
  • Connector: Screw-fastened Euroblock terminal
  • Dry Contact: On: short to GND Off: open
  • I/O Mode: DI
  • Sensor Type: Dry contact Wet Contact (NPN or PNP)
  • Wet Contact (DI to COM): On: 10 to 30 VDC Off: 0 to 3 VDC

Digital Outputs

  • Connector: Screw-fastened Euroblock terminal
  • Current Rating: 200 mA per channel
  • I/O Type: Sink
  • Voltage: 24 to 30 VDC

LED Indicators

  • System: Power x 1 Storage x 1
  • LAN: 2 per port (10/100/1000 Mbps)
  • Serial: 2 per port (Tx, Rx)

Serial Interface

  • Baudrate: 50 bps to 921.6 kbps
  • Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
  • Isolation: N/A
  • Parity: None, Even, Odd, Space, Mark
  • Data Bits: 5, 6, 7, 8
  • Stop Bits: 1, 1.5, 2

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Power Parameters

  • Input Voltage: 12 to 48 VDC
  • Power Connector: M12 A-coded male connector
  • Power Consumption (Max.): 3.3 A @ 12 VDC0.82 A @ 48 VDC
  • Power Consumption: 40 W (max.)

Physical Characteristics

  • Housing: Aluminum
  • IP Rating: IP30
  • Dimensions (with ears): 275 x 63 x 154 mm (10.83 x 2.47 x 6.06 in)
  • Dimensions (without ears): 250 x 57 x 154 mm (9.84 x 2.23 x 6.06 in)
  • Weight: 2,000 g (4.44 lb)
  • Installation: DIN-rail mounting (optional), Wall mounting (standard)

Environmental Limits

  • Operating Temperature: -25 to 55°C (-13 to 131°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032/24
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
  • Railway: EN 50121-4, IEC 60571
  • Railway Fire Protection: EN 45545-2
  • Safety: EN 60950-1, UL 60950-1
  • Shock: IEC 60068-2-27, IEC 61373, EN 50155
  • Vibration: IEC 60068-2-64, IEC 61373, EN 50155

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 332,173 hrs
  • Standards: Telcordia (Bellcore), GB

Warranty

  • Warranty Period: 3 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
V2406A-C2 x86 embedded computer with Intel Celeron 1047UE, 4 GB of DDR3 RAM installed, 2 DVIs, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 1 backup CFast socket, 1 OS CFast socket, 12 to 48 VDC power, -25 to 55°C operating temperature (EN 50155 Class T1)
V2406A-C2-T x86 embedded computer with Intel Celeron 1047UE, 4 GB of DDR3 RAM installed, 2 DVIs, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 1 backup CFast socket, 1 OS CFast socket, 12 to 48 VDC power, -40 to 70°C operating temperature (EN 50155 Class TX)
V2406A-C2-CT-T x86 embedded computer with Intel Celeron 1047UE, 4 GB of DDR3 RAM installed, 2 DVIs, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 1 backup CFast socket, 1 OS CFast socket, 12 to 48 VDC power, conformal coating, -40 to 70°C operating temperature (EN 50155 Class TX)
V2406A-C7 x86 embedded computer with Intel Core i7-3517UE, 4 GB of DDR3 RAM installed, 2 DVIs, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 1 backup CFast socket, 1 OS CFast socket, 12 to 48 VDC power, -25 to 55°C operating temperature (EN 50155 Class T1)
V2406A-C7-T x86 embedded computer with Intel Core i7-3517UE, 4 GB of DDR3 RAM installed, 2 DVIs, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 1 backup CFast socket, 1 OS CFast socket, 12 to 48 VDC power, -40 to 70°C operating temperature (EN 50155 Class TX)
V2406A-C7-CT-T x86 embedded computer with Intel Core i7-3517UE, 4 GB of DDR3 RAM installed, 2 DVIs, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 1 backup CFast socket, 1 OS CFast socket, 12 to 48 VDC power, conformal coating, -40 to 70°C operating temperature (EN 50155 Class TX)
V2406A-C2-W7E x86 embedded computer with Intel Celeron 1047UE, 4 GB of DDR3 RAM installed, 2 DVIs, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 1 backup CFast socket, 1 OS CFast socket pre-installed with CFast card, 12 to 48 VDC power, Windows Embedded Standard 7, -25 to 55°C operating temperature (EN 50155 Class T1)
V2406A-C2-T-W7E x86 embedded computer with Intel Celeron 1047UE, 4 GB of DDR3 RAM installed, 2 DVIs, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 1 backup CFast socket, 1 OS CFast socket pre-installed with CFast card, 12 to 48 VDC power, Windows Embedded Standard 7, -40 to 70°C operating temperature (EN 50155 Class TX)
V2406A-C7-T-W7E x86 embedded computer with Intel Core i7-3517UE, 4 GB of DDR3 RAM installed, 2 DVIs, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 1 backup CFast socket, 1 OS CFast socket pre-installed with CFast card, 12 to 48 VDC power, Windows Embedded Standard 7, -40 to 70°C operating temperature (EN 50155 Class TX)
