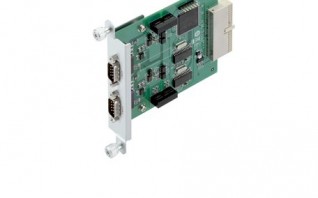

EPM-3112 EXPANSION MODULE

2 isolated CAN ports with DB9 connectors, -25 to 55°C operating temperature
2 isolated CAN ports with DB9 connectors

CAN Interface

  • No. of Ports: 2
  • Connector: DB9 male
  • Industrial Protocols: CAN 2.0A, CAN 2.0B
  • Signals: CAN_H and CAN_L CAN_H CAN_L
  • Isolation: 2 kV
  • Speed: 1 Mbps

Physical Characteristics

  • Dimensions (without ears): 104 x 121 x 34 mm (4.09 x 4.76 x 1.34 in)
  • Weight: 127 g (0.28 lb)

Environmental Limits

  • Operating Temperature: -25 to 55°C (-13 to 131°F)

Available Models

Model No. Description Quantity
EPM-3112 2 isolated CAN ports with DB9 connectors, -25 to 55°C operating temperature
