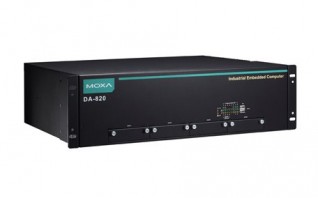

DA-820 SERIES

Celeron 1047UE, dual-core 1.4 GHz, 100 to 240 VAC/VDC x 2, -40 to 75°C, w/o CFast/RAM/OS
IEC 61850-3, IEEE 1613, and IEC 60255 compliant for power substation automation systems
Intel® Core™ Celeron, i3, and i7 CPU and QM77 chipset
1 CFast slot for OS and 4 SATA III for storage expansion (support Intel® RST RAID 0/1/5/10)
6 USB 2.0 ports for high-speed peripherals
3 PCIe x1 slots and 2 PCI slots for expansion modules
1 PCIe x16 slot for an additional video card
Highly reliable design, supporting dual power and PRP/HSR technology (with PRP/HSR expansion module)
Onboard TPM module for enhanced cybersecurity

Computer

  • CPU: Intel® Celeron® Processor 1047UE (2M Cache, 1.40 GHz)
  • System Chipset: Mobile Intel® QM77 Express Chipset
  • Graphics Controller: Intel® HD Graphics 4000 (integrated)
  • System Memory Slot: SODIMM DDR3/DDR3L slot x 2
  • Supported OS: Windows 7 Pro for Embedded Systems Windows Embedded Standard 7 (WS7P) 64-bit Linux Debian 7 Note: OS available by CTOS
  • Storage Slot: 2.5-inch HDD/SSD slots x 4 CFast slot x 1
  • DRAM: 16 GB max. capacity (204-pin SODIMM x 2, each supporting unbuffered ECC DDR3 memory at 1333 and 1600 MT/s and 8 GB maximum per module)

Computer Interface

  • Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
  • Serial Ports: RS-232/422/485 ports x 2, software selectable (DB9 male)
  • USB 2.0: USB 2.0 hosts x 6, type-A connectors
  • Expansion Slots: PCIe x1 slots x 3 PCIe x16 slot x 1 PCI slots x 2
  • Video Input: VGA x 2, 15-pin D-sub connector (female)

LED Indicators

  • System: Power x 1 Storage x 1 Programmable x 8
  • LAN: 8 per port (10/100/1000 Mbps)
  • Serial: 2 per port (Tx, Rx)

Serial Interface

  • Baudrate: 50 bps to 115.2 kbps
  • Connector: DB9 male
  • ESD: 8 kV (level 4)
  • Isolation: 2 kV
  • Serial Standards: RS-232/422/485
  • Surge: 2 kV

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Power Parameters

  • Power Button: Reset button (front panel) ON/OFF (rear panel)
  • Power Consumption: 60 W (max.)

Physical Characteristics

  • Housing: Metal
  • Dimensions (without ears): 361 x 440 x 133 mm (14.23 x 17.32 x 5.24 in)
  • Weight: 14,000 g (31.11 lb)
  • Installation: 19-inch rack mounting

Environmental Limits

  • Operating Temperature: -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 61000-6-2/-6-4
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-11 DIPs IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8: 20 A/m
  • Power Substation: IEC 61850-3, IEEE 1613
  • Protection Relay: IEC 60255
  • Safety: EN 60950-1, IEC 60950-1, UL 60950-1
  • Shock: IEC 60068-2-27, IEC 60870-2-2, IEC 61850-3 Edition 1.0

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 222,207 hrs

Warranty

  • Warranty Period: 3 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
DA-820-C8-SP-HV i7-3612QE, quad-core 2.1 GHz, 100 to 240 VAC/VDC, -40 to 60°C, w/o CFast/RAM/OS
DA-820-C8-DP-HV i7-3612QE, quad-core 2.1 GHz, 100 to 240 VAC/VDC x 2, -40 to 60°C, w/o CFast/RAM/OS
DA-820-C8-SP-LV i7-3612QE, quad-core 2.1 GHz, 24 to 110 VDC, -40 to 60°C, w/o CFast/RAM/OS
DA-820-C8-DP-LV i7-3612QE, quad-core 2.1 GHz, 24 to 110 VDC x 2, -40 to 60°C, w/o CFast/RAM/OS
DA-820-C7-SP-HV i7-3555LE, dual-core 2.5 GHz, 100 to 240 VAC/VDC, -40 to 60°C, w/o CFast/RAM/OS
DA-820-C7-SP-HV-T i7-3555LE, dual-core 2.5 GHz, 100 to 240 VAC/VDC, -40 to 75°C, w/o CFast/RAM/OS
DA-820-C7-DP-HV i7-3555LE, dual-core 2.5 GHz, 100 to 240 VAC/VDC x 2, -40 to 60°C, w/o CFast/RAM/OS
DA-820-C7-DP-HV-T i7-3555LE, dual-core 2.5 GHz, 100 to 240 VAC/VDC x 2, -40 to 75°C, w/o CFast/RAM/OS
DA-820-C7-SP-LV-T i7-3555LE, dual-core 2.5 GHz, 24 to 110 VDC, -40 to 75°C, w/o CFast/RAM/OS
DA-820-C7-DP-LV-T i7-3555LE, dual-core 2.5 GHz, 24 to 110 VDC x 2, -40 to 75°C, w/o CFast/RAM/OS
DA-820-C3-SP-HV-T i3-3217UE, dual-core 1.6 GHz, 100 to 240 VAC/VDC, -40 to 75°C, w/o CFast/RAM/OS
DA-820-C3-DP-HV-T i3-3217UE, dual-core 1.6 GHz, 100 to 240 VAC/VDC x2, -40 to 75°C, w/o CFast/RAM/OS
DA-820-C3-SP-LV-T i3-3217UE, dual-core 1.6 GHz, 24 to 110 VDC, -40 to 75°C, w/o CFast/RAM/OS
DA-820-C3-DP-LV-T i3-3217UE, dual-core 1.6 GHz, 24 to 110 VDC x 2, -40 to 75°C, w/o CFast/RAM/OS
DA-820-C1-SP-HV-T Celeron 1047UE, dual-core 1.4 GHz, 100 to 240 VAC/VDC, -40 to 75°C, w/o CFast/RAM/OS
DA-820-C1-DP-HV-T Celeron 1047UE, dual-core 1.4 GHz, 100 to 240 VAC/VDC x 2, -40 to 75°C, w/o CFast/RAM/OS
DA-820-C1-SP-LV-T Celeron 1047UE, dual-core 1.4 GHz, 24 to 110 VDC, -40 to 75°C, w/o CFast/RAM/OS
DA-820-C1-DP-LV-T Celeron 1047UE, dual-core 1.4 GHz, 24 to 110 VDC x 2, -40 to 75°C, w/o CFast/RAM/OS
