V2416A SERIES

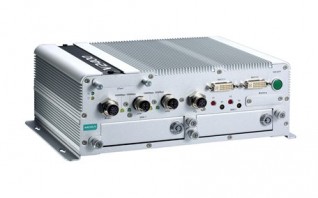

(CTO model) x86 embedded computer with Intel Core i7-3517UE, 2 DVI-Is, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 1 OS CFast socket, 1 backup CFast socket, 4 GB of DDR3 RAM installed, two EN50155 anti-vibration hot-swappable storage trays, 12 to 48 VDC power, conformal coating, -40 to 70°C operating temperature (EN 50155 Class TX)

Intel Celeron/Core i7 high performance network video recorder for rolling stock applications
Two hot-swappable trays for 2.5-inch HDD/SSD storage expansion
API Library for easy development and storage volume notification
Dual independent DVI-I displays
2 gigabit Ethernet ports with M12 X-coded connectors
2 CFast sockets for OS backup
M12 A-coded power connector
Compliant with EN 50121-4
Complies with a portion of EN 50155 specifications
IEC 61373 certified for shock and vibration resistance
-40 to 70°C wide temperature models available
Supports SNMP-based system configuration, control, and monitoring (Windows Embedded Standard 7 only)

Computer

  • Hardware Specifications: CPU
  • • Intel Celeron 1047UE processor (2M cache, 1.40 GHz) for the V2416A-C2 series • Intel Core i7-3517UE processor (4M cache, 1.7 GHz) for the V2416A-C7 series: OS
  • Windows Embedded Standard 7 or Linux Debian 7: System Chipset
  • Mobile Intel® HM65 Express: System Memory
  • 1 DDR3-1600 SO-DIMM SDRAM slot, 8 GB max., 4 GB pre-installed: USB

Storage

  • USB 2.0 hosts x 3 (Type A connectors x 2, supporting system boot up, M12 connectors x 1): HDD/SSD Support
  • 2 hot-swappable trays for 2.5-inch HDD/SSD storage expansion* *Storage drive not included. Must be purchased separately.: CFast Support

Other Peripherals

  • 1 slot for OS*, 1 slot for backup storage *32-bit W7E requires at least an 8 GB CFast card *64-bit W7E requires at least a 16 GB CFast card (optional) *Linux Debian 7 requires at least an 8 GB CFast card (must be purchased separately): Audio

Display

  • Line-in, line-out interface (M12 A-coded): Graphics Controller
  • Intel® HD Graphics 4000 (integrated): Connector Type
  • 2 DVI-I connectors: Display Interface

Ethernet Interface

  • DVI up to 1920x1200 resolution @ 60 Hz VGA up to 1920x1200 resolution @ 60 Hz VGA up to 2048x1536 resolution @ 75 Hz: LAN
  • Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2: Isolation Protection

Serial Interface

  • 1.5 kV: Serial Standards
  • 4 software-selectable RS-232/422/485 ports (DB9 male): ESD Protection
  • 4 kV for all signals: Isolation Protection

Serial Communication Parameters

  • 1.5 kV: Data Bits
  • 5, 6, 7, 8: Stop Bits
  • 1, 1.5, 2: Parity
  • None, Even, Odd, Space, Mark: Flow Control
  • RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485: Baudrate

Serial Signals

  • 50 bps to 921.6 kbps (non-standard baudrates supported; see user’s manual for details): RS-232
  • TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND: RS-422
  • TxD+, TxD-, RxD+, RxD-, GND: RS-485-4w

Digital Input

  • Data+, Data-, GND: Input Channels
  • 6: Input Voltage
  • 0 to 30 VDC at 25 Hz: Digital Input Levels for Dry Contacts
  • • Logic level 0: Close to GND • Logic level 1: Open: Digital Input Levels for Wet Contacts
  • • Logic level 0: +3 V max. • Logic level 1: +10 V to +30 V (Source to DI): Isolation

Digital Output

  • 3 kV optical isolation: Output Channels
  • 2, sink type: Output Current
  • Max. 200 mA per channel: On-State Voltage
  • 24 VDC nominal, open collector to 30 VDC: Connector Type
  • 10-pin screw-fastened Euroblock terminal (6 inputs,2 outputs, DI Source, GND): Isolation

LEDs

  • 3 kV optical isolation: System
  • Power x 1, Storage x 1, hot-swappable trays x 2: LAN
  • 2 per port (10/100/1000 Mbps): Serial

Switches and Buttons

  • 2 per port (Tx and Rx): Power Switch
  • on/off (front panel): Reset Button
  • For warm reboot (front panel): Hot-swappable

Physical Characteristics

  • trigger (on each removable tray): Housing
  • Aluminum: Weight
  • 4 kg (8.98 lb): Dimensions
  • Without ears: 250 x 86 x 154 mm (9.84 x 3.38 x 6.06 in) With ears: 275 x 92 x 154 mm (10.83 x 3.62 x 6.06 in): Mounting

Environmental Limits

  • Wall, DIN rail (optional), VESA (optional): Operating Temperature*
  • Standard models: -25 to 55°C (-13 to 131°F) Wide temp. models: -40 to 70°C (-40 to 158°F): Storage Temperature*
  • -40 to 85°C (-40 to 185°F) *without HDD installed: Ambient Relative Humidity
  • 5 to 95% (non-condensing): Anti-Vibration
  • EN 50155 standard: Anti-Shock

Power Requirements

  • Available on request: Input Voltage
  • 12 to 48 VDC (M12 A-coded) Note: Compliant with EN 50155 at 24 VDC: Input Current
  • • 3.3 A @ 12 VDC • 0.82 A @ 48 VDC: Power Consumption

Standards and Certifications

  • 40 W: Safety
  • UL 60950-1, EN 60950-1: EMC
  • EN 55032/24: EMI
  • CISPR 32, FCC Part 15B Class A: EMS
  • IEC 61000-4-2 ESD: Contact 6: kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8: Green Product
  • RoHS, CRoHS, WEEE: Rail Traffic

Reliability

  • EN 50155*, EN 50121-4, IEC 60571 *Complies with a portion of EN 50155 specifications. Please contact Moxa or a Moxa distributor for details.: Automatic Reboot Trigger

MTBF (mean time between failures)

  • Software-programmable watchdog timer configurable from 1 to 255 seconds: Time
  • 332,173 hrs: Standard

Warranty

  • Telcordia (Bellcore) Standard TR/SR: Warranty Period
  • 3 years: Details
  • See www.moxa.com/warrantyNote: These hardware specifications describe the embedded computer unit itself, but not its official accessories. In particular, the wide temperature specification does not apply to accessories such as power adapters and cables.:

Linux

  • Software Specifications: OS
  • Linux Debian 7: Web Server (Apache)
  • Allows you to create and manage web sites; supports PHP and XML: Terminal Server (SSH)
  • Provides secure encrypted communications between two un-trusted hosts over an insecure network: File System
  • EXT 4: Internet Protocol Suite
  • TCP, UDP, IPv4, SNMPv1/v2c/v3, ICMP, ARP, HTTP, SSH 1.0/2.0, SSL, DHCP, NTP, NFS, Telnet, FTP, TFTP, PPP, PPPoE: Internet Security
  • OpenVPN, Netfilter/iptables: Secure Shell for Remote Access
  • SSH allows remote logins to a secure encrypted console from any connected network dial-up: Dial-up Networking
  • PPP Daemon for Linux that allows Unix machines to connect to the Internet through dialup lines, using the Point-to-Point Protocol (PPP). Works with ‘chat’, ‘dip’, and ‘dialup’, ‘dip’, and ‘diald’, among (many) others. Supports IP, TCP, UDP, and (for Linux) IPX (Novell): File Server
  • Enables remote clients to access files and other resources over the network: Watchdog
  • A watchdog timer that triggers a system reset upon software freezes, for both specific applications and system-wide failures.: Application Development Software

Windows Embedded Standard 7

  • • Moxa API Library (Watchdog timer, Moxa serial I/O control, Moxa DI/DO API) • GNU C library • Perl: Core OS
  • • 32-bit or 64-bit supported • Remote Client • Remote Procedure Call: Applications and Services Development
  • • .Net Framework 4.5 • Remote Desktop Protocol 7.1 • COM OLE Application Support • COM+ Application Support • MSMQ: Internet Services
  • • Internet Explorer 11 • IIS 7.0: File Systems and Data Storage
  • • Windows Data Access Components • Windows Backup and Restore: Diagnostics
  • • Common Diagnostic Tools • Problem Reports and Solutions: Fonts
  • Chinese (Trad. and Simp.), Japanese, Korean, Western, Middle Eastern, South East Asian, and South Asian Fonts: Graphics and Multimedia
  • • MPEG DTV-DVD Audio Decoder (MPEG-2, AAC) • MPEG Layer-3 Audio Codecs (MP3) • MPEG4 Decoders • Windows Media Video VC-1 (WMV) Codecs • DirectX and Windows Device Experience • Windows Media Player 12: Management
  • • Group Policy Management • Windows Management Instrument (WMI) • Windows Update: Networking
  • • Extensible Authentication Protocol (EAP) • Internet Authentication Service • Telnet Server • Bluetooth • Domain Services • Network Access Protection • Network and Sharing Center • Quality of Service • Remote Access Service (RAS) • Telephony API Client • Windows Firewall • Wireless Networking: Security
  • • Credential Roaming Service • Credentials and Certificate Management • Windows Authorization Manager (AZMAN) • Windows Security Center • Active Directory Rights Management • Security Base • Encrypted File System (EFS): Embedded Features
  • • Enhanced Write Filter (EWF) • File-Based Write Filter (FBWF) • Message Box Default Reply • Registry Filter • WSDAPI for .NET: Embedded Self-Health Diagnostic Software
  • SNMP-based remote scripting layer for monitoring, reporting, and control: SmartRecovery

available models

Model No. Description Quantity
V2416A-C2 (CTO model) x86 embedded computer with Intel Celeron 1047UE, 2 DVI-Is, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 1 OS CFast socket, 1 backup CFast socket, 4 GB of DDR3 RAM installed, two EN50155 anti-vibration hot-swappable storage trays,12 to 48 VDC power, -25 to 55°C operating temperature (EN 50155 Class T1)
V2416A-C2-T (CTO model) x86 embedded computer with Intel Celeron 1047UE, 2 DVI-Is, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 1 OS CFast socket, 1 backup CFast socket, 4 GB of DDR3 RAM installed, two EN50155 anti-vibration hot-swappable storage trays, 12 to 48 VDC power, -40 to 70°C operating temperature (EN 50155 Class TX)
V2416A-C2-CT-T (CTO model) x86 embedded computer with Intel Celeron 1047UE, 2 DVI-Is, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 1 OS CFast socket, 1 backup CFast socket, 4 GB of DDR3 RAM installed, two EN50155 anti-vibration hot-swappable storage trays, 12 to 48 VDC power, conformal coating, -40 to 70°C operating temperature (EN 50155 Class TX)
V2416A-C7 (CTO model) x86 embedded computer with Intel Core i7-3517UE, 2 DVI-Is, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 1 OS CFast socket, 1 backup CFast socket, 4 GB of DDR3 RAM installed, two EN50155 anti-vibration hot-swappable storage trays, 12 to 48 VDC power, -25 to 55°C operating temperature (EN 50155 Class T1)
V2416A-C7-T (CTO model) x86 embedded computer with Intel Core i7-3517UE, 2 DVI-Is, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 1 OS CFast socket, 1 backup CFast socket, 4 GB of DDR3 RAM installed, two EN50155 anti-vibration hot-swappable storage trays, 12 to 48 VDC power, -40 to 70°C operating temperature (EN 50155 Class TX)
V2416A-C7-CT-T (CTO model) x86 embedded computer with Intel Core i7-3517UE, 2 DVI-Is, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 1 OS CFast socket, 1 backup CFast socket, 4 GB of DDR3 RAM installed, two EN50155 anti-vibration hot-swappable storage trays, 12 to 48 VDC power, conformal coating, -40 to 70°C operating temperature (EN 50155 Class TX)
V2416A-C2-W7E x86 embedded computer with Intel Celeron 1047UE, 2 DVI-Is, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 8 GB of OS CFast card pre-installed with Windows 7 Embedded, 1 backup CFast socket, 4 GB of DDR3 RAM installed, two EN50155 anti-vibration hot-swappable storage trays, 12 to 48 VDC power, Windows Embedded Standard 7, -25 to 55°C operating temperature (EN 50155 Class T1)
V2416A-C2-T-W7E x86 embedded computer with Intel Celeron 1047UE, 2 DVI-Is, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 8 GB of OS CFast card pre-installed with Windows 7 Embedded, 1 backup CFast socket, 4 GB of DDR3 RAM installed, two EN50155 anti-vibration hot-swappable storage trays, 12 to 48 VDC power, Windows Embedded Standard 7, -40 to 70°C operating temperature (EN 50155 Class TX)
V2416A-C7-T-W7E x86 embedded computer with Intel Core i7-3517UE, 2 DVI-Is, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 8 GB of OS CFast card pre-installed with Windows 7 Embedded, 1 backup CFast socket, 4 GB of DDR3 RAM installed, two EN50155 anti-vibration hot-swappable storage trays, 12 to 48 VDC power, Windows Embedded Standard 7, -40 to 70°C operating temperature (EN 50155 Class TX)

optional accessories

Model No. Description Quantity
M12A-5PMM-IP68 D-coded screw-in USB connector, 5-pin male M12 connector, IP68-rated
M12A-8PMM-IP67 Field-installation A-coded 8-pin male screw-in M12 connector, IP67-rated
M12X-8PMM-IP67 Field-installation X-coded screw-in Gigabit Ethernet connector, 8-pin male M12 connector, IP67-rated
CBL-M12XMM8PRJ45-BK-100-IP67 1-meter X-coded M12-to-RJ45 Cat-5E UTP Gigabit Ethernet cable, 8-pin male M12 connector, IP67-rated
M12A-5P-IP68 Field-installable A-coded screw-in sensor connector, female
CBL-M12(FF5P)/Open-100 IP67 1-meter A-coded M12-to-5-pin power cable, 5-pin female M12 connector, IP67-rated
DK-DC50131-01 DIN-Rail mounting kit
V2400 Isolated Wall Mounting Kit Wall mounting kit with isolation protection. Including two wall mount brackets and four screws
RTC Battery Kit Lithium battery with built-in connector for easy replacement
PWC-C7US-2B-183 10A/125V US power cord, 183 cm length
PWC-C7EU-2B-183 2.5A/250V Continental European (EU) power cord, 183 cm length
PWC-C7UK-2B-183 2.5A/250V United Kingdom (UK) power cord, 183 cm length
PWC-C7AU-2B-183 2.5A/250V Australian (AU) power cord, 183 cm length
PWC-C7CN-2B-183 2.5A/250V China (CN) power cord, 183 cm length
PWR-24270-DT-S1 Power Adapter
