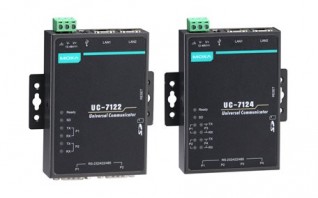

UC-7120 SERIES

Arm-based palm-sized industrial computer with 4 serial ports, and 2 LAN ports, WinCE 5.0, -10 to 60°C operating temperature
Cirrus Logic EP9302 Arm9 32-bit 200 MHz processor
Onboard 32 MB RAM, 16 MB flash disk
2 or 4 software-selectable RS-232/422/485 serial ports
50 bps to 921.6 kbps baudrate (nonstandard baudrates supported)
Dual 10/100 Mbps Ethernet ports
SD slot for storage expansion
Built-in real-time clock (RTC), buzzer, watchdog timer (WDT)
Ready-to-run WinCE 5.0 platform
-40 to 75°C wide-temperature models available

Computer

  • CPU: Cirrus EP9302 Arm9, 200 MHz
  • Supported OS: Windows Embedded Compact 5.0
  • Storage Slot: SD slots x 1

Computer Interface

  • Ethernet Ports: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
  • Serial Ports: RS-232/422/485 ports x 2, software selectable (DB9 male)
  • USB 2.0: USB 2.0 hosts x 1, type-A connectors
  • Console Port: RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)

Memory

  • Flash: 16 MB
  • SDRAM: 32 MB

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector): 2
  • Magnetic Isolation Protection: 1.5 kV (built-in)

USB Interface

  • Storage Port: USB Type A
  • USB Standards: USB 1.1/2.0 compliant

LED Indicators

  • System: System Ready x 1 SD slots x 1
  • LAN: 2 per port (10/100/1000 Mbps)
  • Serial: 2 per port (Tx, Rx)

Serial Interface

  • Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
  • Connector: DB9 male
  • Data Bits: 5, 6, 7, 8
  • Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
  • ESD Protection: 4 kV, for all signals
  • No. of Ports: 2
  • Parity: None, Even, Odd, Space, Mark
  • RS-485 Data Direction Control: ADDC® (automatic data direction control)
  • Serial Standards: RS-232/422/485
  • Stop Bits: 1, 1.5, 2

Serial Signals

  • RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422: Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w: Data+, Data-, GND
  • RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Power Parameters

  • Connection: Removable terminal block
  • Input Current: 170 mA @ 24 VDC 340 mA @ 12 VDC
  • Input Voltage: 12 to 48 VDC
  • No. of Power Inputs: 1
  • Operating Voltage: 12 to 48 VDC
  • Power Connector: 3-pin terminal block Terminal block (for DC models)
  • Power Consumption: 4.1 W (max.)

Physical Characteristics

  • Housing: Metal
  • Dimensions (with ears): 100 x 111 x 26 mm (4.18 x 4.37 x 1.02 in)
  • Dimensions (without ears): 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)
  • Weight: 190 g (0.42 lb)
  • Installation: DIN-rail mounting (with optional kit), Wall mounting (standard)

Environmental Limits

  • Operating Temperature: -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included): -20 to 80°C (-4 to 176°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • EMC: EN 55032/24, EN 61000-6-2/-6-4, EN 61000-3-2 Class A, EN 61000-3-3
  • EMI: CISPR 32, FCC Part 15B Class A
  • EMS: IEC 61000-4-11 DIPs IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF
  • Safety: EN 60950-1, IEC 60950-1, UL 60950-1
  • Vibration: IEC 60068-2-6

Declaration

  • Green Product: RoHS, CRoHS, WEEE

MTBF

  • Time: 234,746 hrs
  • Standards: Telcordia (Bellcore), GB

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
UC-7122-CE Arm-based palm-sized industrial computer with 4 serial ports, and 2 LAN ports, WinCE 5.0, -10 to 60°C operating temperature
UC-7124-CE Arm-based palm-sized industrial computer with 4 serial ports, and 2 LAN ports, WinCE 5.0, -10 to 60°C operating temperature
UC-7122-T-CE Arm-based palm-sized industrial computer with 4 serial ports, and 2 LAN ports, WinCE 5.0, -40 to 75°C operating temperature
UC-7124-T-CE Arm-based palm-sized industrial computer with 4 serial ports, and 2 LAN ports, WinCE 5.0, -40 to 75°C operating temperature
